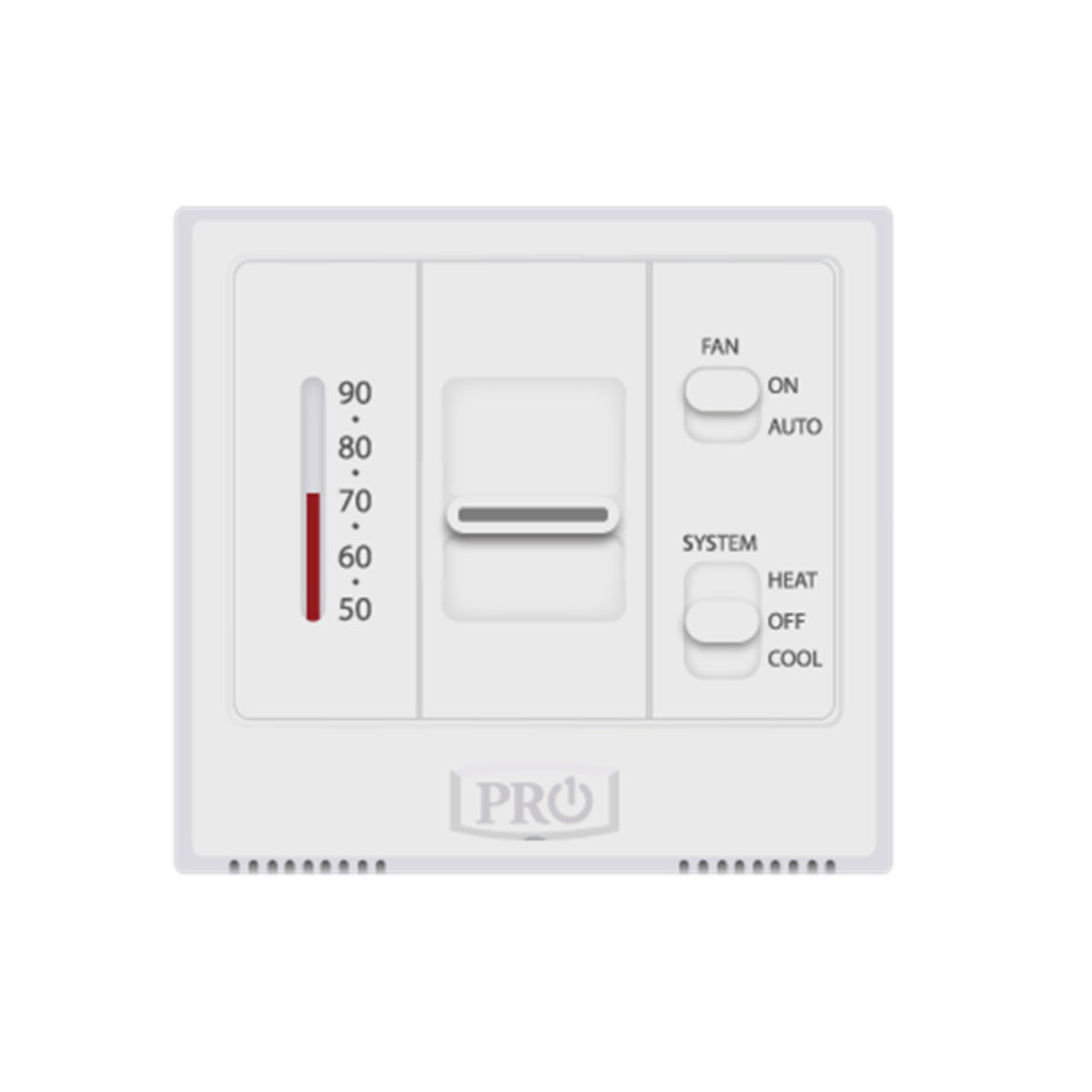

24V Non Programmable 1H/1C Thermostat

Name: 24V Non Programmable 1H/1C Thermostat
Brand: Rheem Parts
SKU: T501M PRO
Price: 33.80 USD
Availability: InStock

$33.80 USD

Sale Sold out

T501M

Simple private label badge system
Three thermostat in one
• Heat - Off - Cool
• Heat only with fan
• Heat only without fan
Removable fan switch
Universal sub-base
Mounts on wall or junction box
Mechanical 24V power
2 year warranty

Specifications
T501M Thermostat
Temperature Range	50°F to 90°F (10°C to 32°C)
Load rating	1 amp per terminal, 1.5 amp maximum all terminals combined
Display accuracy	± 1 °F
Swing (cycle rate or differential)	Heating is adjustable from 0.2°F to 2.0°F Cooling is adjustable from 0.2°F to 2.0°F
Power source	18 to 30 VAC
Operating ambient	32° to +105° (O° to + 41°C)
Operating humidity	90% non-condensing maximum
Dimensions of thermostat	4.7"W x 4.4"H x 1.1"D
