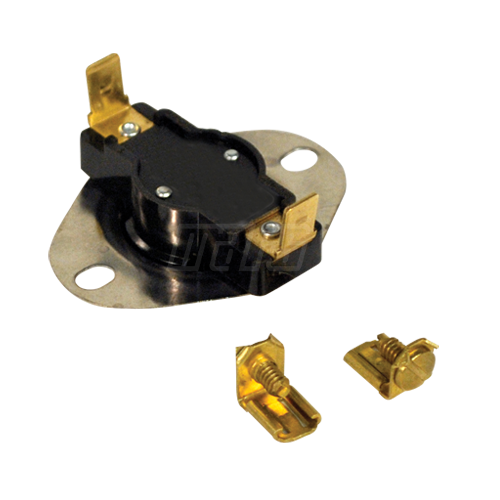

3L01-200 Limit Switch Therm O Disc 60T11-610016

Limit Switch- Open on Temperature Rise

Features:

• Each 3/4" thermostat has an integral oval flange to match the most commonly used mounting option
• Thermostats have 0.25 inch quick-connect terminals, with adapters supplied for conversion to screw-type terminals
• Widest range of replacements in the industry
• UL and CSA listings available

Specifications:

Klixon Temp Code: L200-4

Temperature Close: 160°F

Temperature Open: 200°F

Replaces:

Mars 39024, Lennox 26M1801, Trane CNT-1733, White-Rodgers 3L01-200, TOD 60T11-610016, Klixon L200-4, Gem HL200, Diversitech HLA200, Diversitech DHL200, Robertshaw 775-008, Robertshaw 775-108, Supco SHL200
