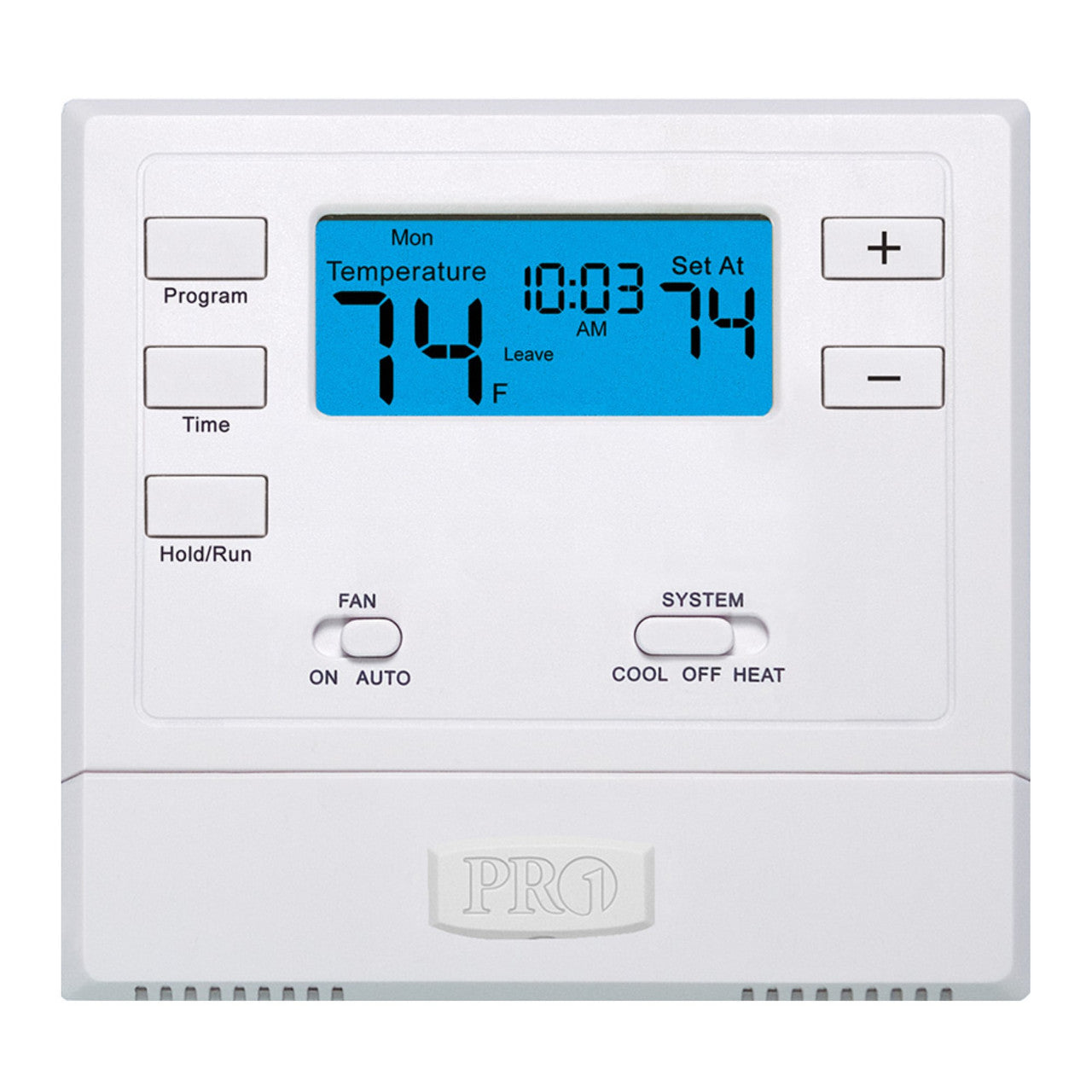

5/1/1 Day Programmable Thermostat (1H/1C)
5/1/1 Day Programmable Thermostat (1H/1C)
No reviews
Regular price
$35.19 USD
Regular price
Sale price
$35.19 USD
Unit price
/
per
Features:
- 2 sq. inch display
- Easy menu driven programming
- Intuitive wake, leave, return, sleep programming icons
- 5/1/1 programmable
- Blue backlight
- Separate B and O terminals
- Separate heating and cooling swing (cycle rate) adjustments
- Room temperature calibration adjustments
- 5 minute compress or delay protection (selectable on or off)
- Simple private label badge system
- Easy wire color coded terminal blocks
- Universal sub-base
- Mounts on wall or junction box
- Battery or 24v power
- 5 year warranty
Specifications
T605-2 Thermostat |
|
The display range of temperature |
41°F to 95°F (5°C to 35°C) |
The control range of temperature |
44°F to 90°F (7°C to 32°C) |
Load rating |
1 amp per terminal, 1.5 amp maximum all terminals combined |
Display accuracy |
± 1 °F |
Swing (cycle rate or differential) |
Heating is adjustable from 0.2°F to 2.0°F |
Power source |
18 to 30 VAC, NEC Class II, 50/60 Hz for hardwire (common wire) |
Operating ambient |
32° to +105° (O° to + 41°C) |
Operating humidity |
90% non-condensing maximum |
Dimensions of thermostat |
4.7"W x 4.4"H x 1.1"D |
