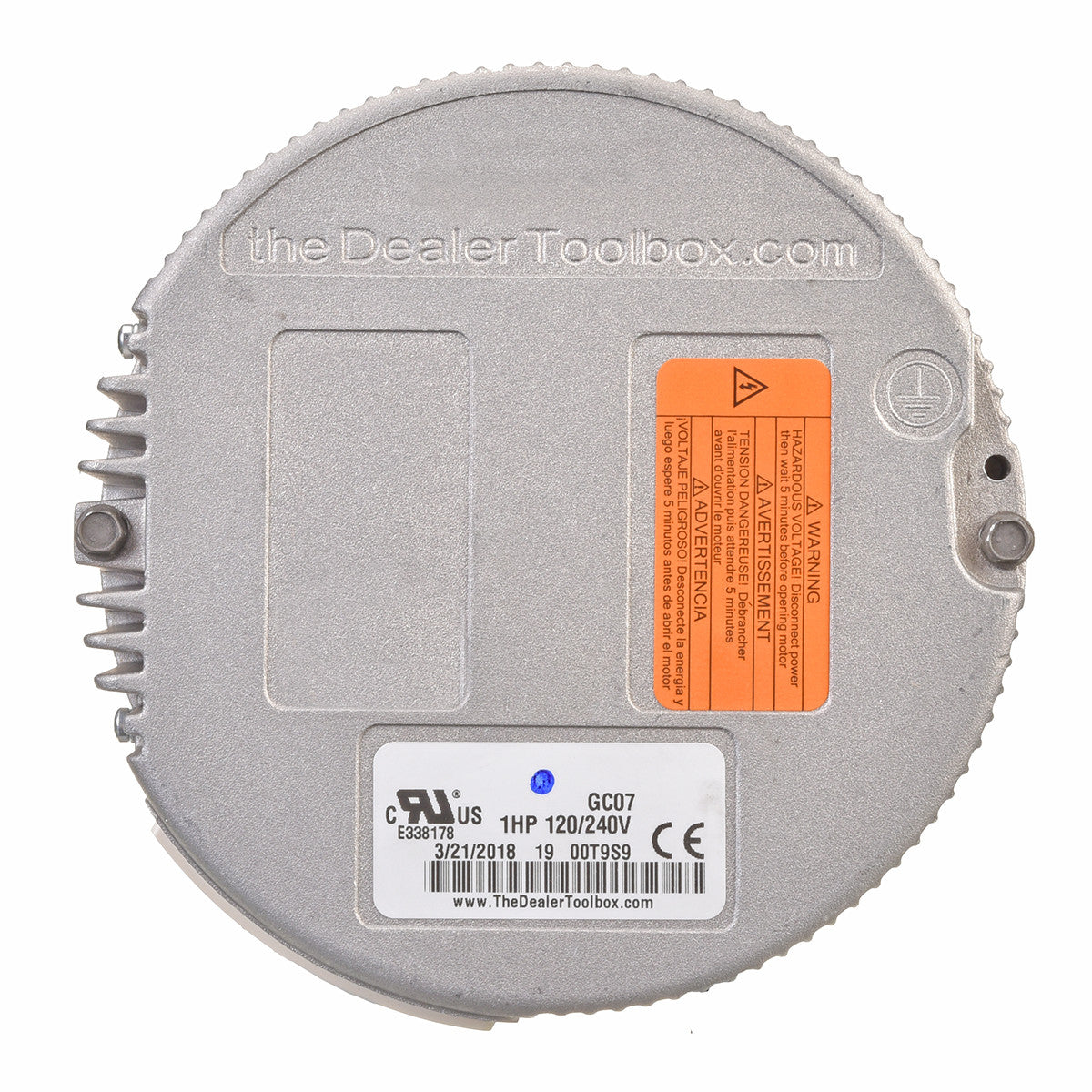

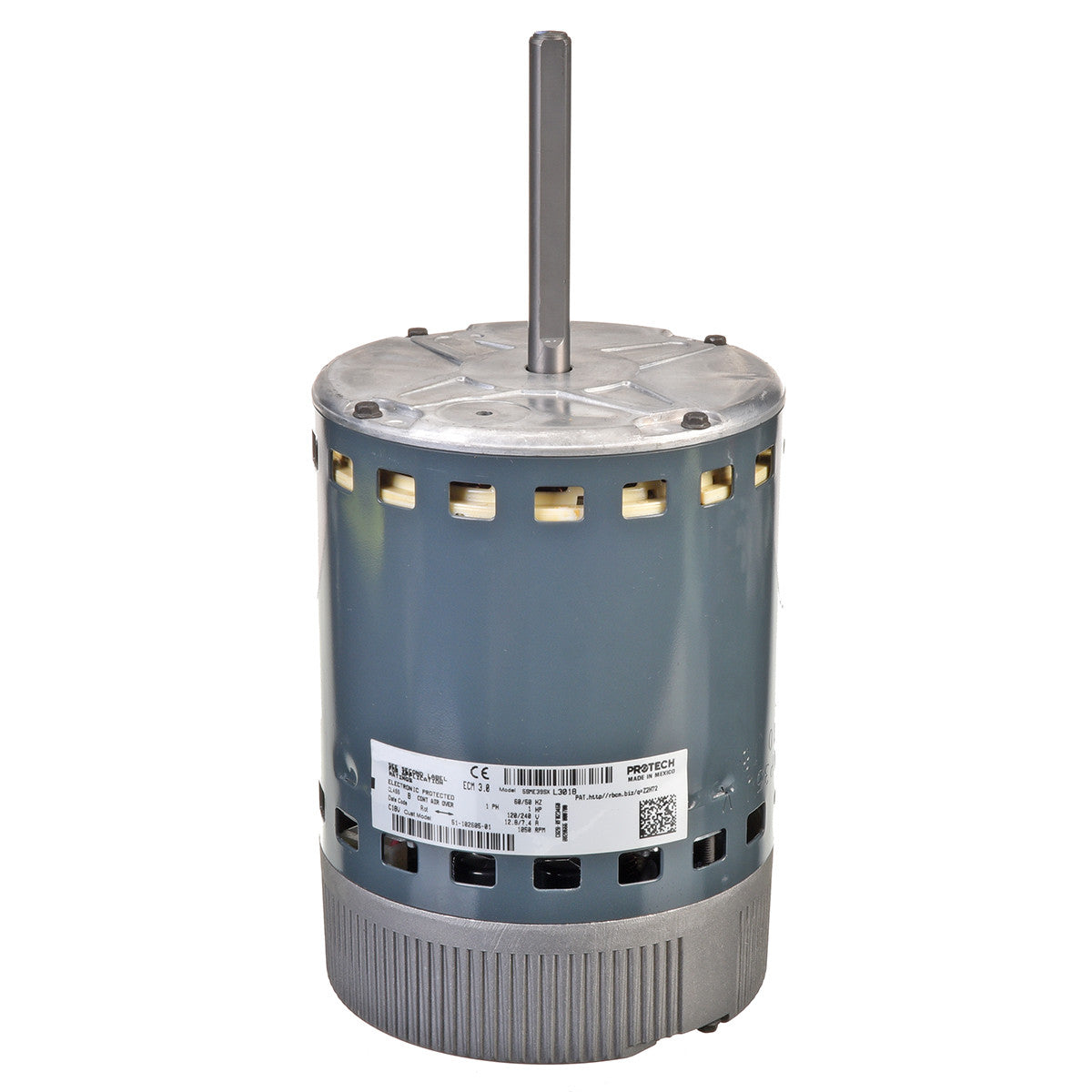

51-102605-01 ECM 3.0 Blower Motor, 1 HP, 1 Phase, 120/230V, Variable Speed
51-102605-01 ECM 3.0 Blower Motor, 1 HP, 1 Phase, 120/230V, Variable Speed
Regular price
$553.89 USD
Regular price
Sale price
$553.89 USD
Unit price
per
| Technical Data » |  |
| Motor Type: | ECM 3.0 |
|---|---|
| HP: | 1 |
| No. of Speeds: | Variable |
| Input Voltage (V): | 120 |
| Input Voltage (V): | 230 |
| No. of Phases: | 1 |
| Frequency (Hz): | 60 |
| Shaft Diameter (in.): | 1/2 |
| Motor Body Diameter (in.): | 5-9/16 |
| Keyed/Flat Shaft Length (in.): | 3-1/2 |
| Overall Shaft Length (in.): | 3-15/16 |
| Motor Body Length (in.): | 7-11/16 |
| Overall Motor Length (in.): | 11-5/8 |
| Mounting: | Shell-band |
| Frame Size: | 48 |
| Bearing Type: | Ball |
| Application: | Blower |
| Drive Type: | Direct Drive |
| Replacement Module: | 51-103223-01 |
This part (or a part replaced by this part) is specified on the following parts lists:
| Model: | Part: | Page: |
|---|---|---|
| RGGE | 51-102605-01 | Electrical Group, Blower Group |
| GF80V2U | 51-102605-01 | Blower Group, Heat Exchanger-Burner Group |
| R802V-ZSA | 51-102605-01 | Blower Group |
| RGFE | 51-102605-01 | Electrical Group, Blower Group |
| RGFG | 51-102605-01 | Electrical Group, Blower Group |
| RGJF | 51-102605-01 | Electrical Group, Blower Group, Heat Exchanger-Burner Group |
| RGLE | 51-102605-01 | Electrical Group, Blower Group |
| RGPE | 51-102605-01 | Blower Group, Heat Exchanger-Burner Group |
| S802V-ZSA | 51-102605-01 | Blower Group |
