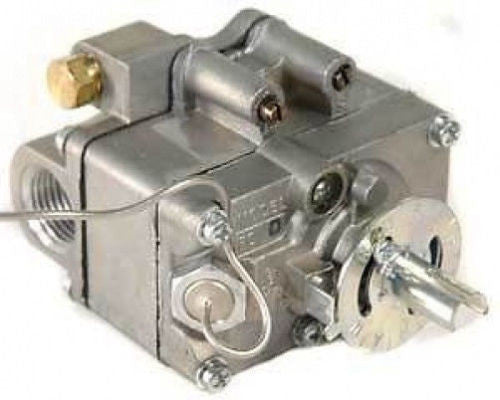

Bakers Pride M1005X 300-650 Oven Thermostat Lincoln 369006

Features and Benefits
• Available in various temperature ranges, with temperature control up to 650°F (343°C)
• Heat resistant materials and rugged design
• Front adjustment
• The pilot and bypass keys are accessible and the pilot and keys are slotted for easy adjustment from the front of the control
• Provides temperature control on most gas appliance systems
• Allows for low temperature control
• Modulates the main gas supply and controls the bypass gas with a snap under the same thermostatic action
• Bulb and capillary assemblies supplied in copper, nickel plated copper or steel
• Heat resistant plastic dials available in black with white characters
• RoHS Compliant

Specifications
• Ambient temperature: 32°F to 350°F (0°C to 177°C)
• Maximum inlet pressure: 0.5 PSI
• Capacity (Natural Gas):
- 3/8” pipe in and out 100,000 BTU/HR
- 1/2” pipe in and out 100,000 BTU/HR
- 7/16” tubing in and out 100,000 BTU/HR

Replaces:

Bakers Pride M1005A, M1005X
Consolidated Comm G-140
Lincoln Food Service 369006, Z92700048 RobertShaw FDTH-1-06-48, Z750660048, Z75066-48
