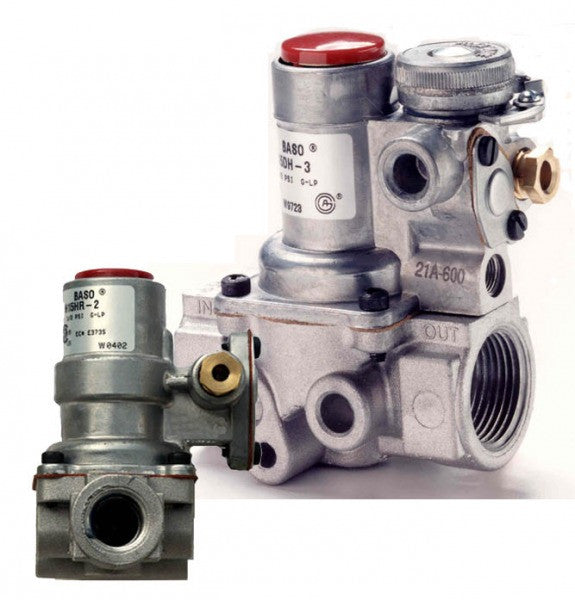

Baso H15CQ-3 Safety Gas Valve Southbend 1180866 H15CQ-3C

The H15 Series pilot valves provide safe lighting and complete shutoff of pilot and main burner gas in the event that the flame heating the thermocouple is extinguished. They are designed for standing pilot applications and can be used with natural gas and Liquefied Petroleum (LP) gas, at pressures up to 0.5 psi. Typical applications include commercial cooking equipment, heaters, kilns, dishwashing equipment, industrial ovens, and similar applications.

Features & Benefits:

• Compact Design permits installation in dimensionally restricted applications
• Safe Lighting allows gas flow only to the pilot burner during lighting
• Reliable- Proven by thousands of units in service
• Easy Operation provides simple lighting with use of a large reset button
• You may mount the H15 valves in any convenient position

Specifications:

Maximum inlet pressure is 0.5 psi

Permissible ambient (surface) temperature is

• -30 to 175°F (-34 to 80°C) for models without rotor valve

• 32 to 175°F (0 to 80 °C) for models with rotor valve

• -20 to 300°F (-29 to 150°C) for H15_B and H15_R models only

High Temperature model allows for use in valve surface temperatures up to 300°F

Inlet and Outlet (Female NPT) 1/2" x 1/2"

Nat Gas Capacity Btu/hr (@ 1" Pressure Drop) 322,000

Pilot Tap (in.) - (2) 1/4 cc right

Pressure Tap: None

Pilot Gas Flow/Rotor "B" valve: External/ NO

Replaces: Southbend 1180866
