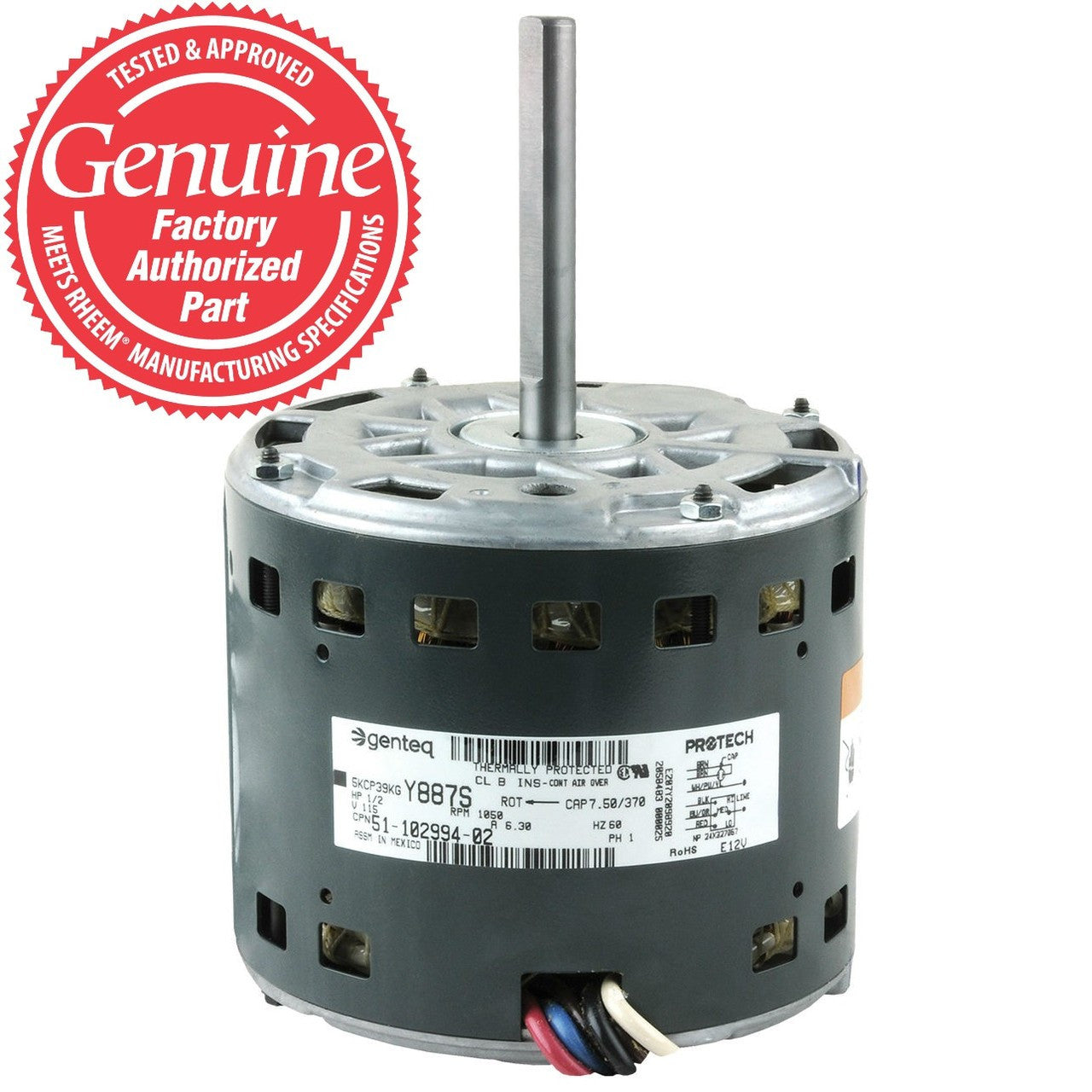

Blower Motor 1/2 HP 1075 RPM 3 SPD 120/1/60

Technical Data
HP:1/2
No. of Speeds:3
High Speed (RPM):1075
Input Voltage (V):120
No. of Phases:1
Frequency (Hz):60
Rotation Direction (OSE):CCW
Run Capacitor (uF/V):7.5/370
FLA at 120V (A):6.30
LRA at 120V (A):12.90
Shaft Diameter (in.):1/2
Motor Body Diameter (in.):5-5/8
Keyed/Flat Shaft Length (in.):3
Overall Shaft Length (in.):3-1/2
Motor Body Length (in.):4-3/4
Overall Motor Length (in.):8-5/16
Mounting:Shell-band
Mounting:Shell-screw
Frame Size:48
Bearing Type:Sleeve
Application:Blower
Drive Type:Direct Drive


Where Used
This part (or a part replaced by this part) is specified on the following parts lists:
Model:Part:Page:
RGRJ51-24144-01Blower Group
RGTJ51-24144-01Blower Group
90RJ51-24144-01Blower Group
90RS51-24144-01Blower Group
90RT51-24144-01Blower Group, Heat Exchanger-Burner Group
90TJ51-24144-01Blower Group
90TS51-24144-01Blower Group
GF901D51-24144-01Blower Group
GF901U51-24144-01Blower Group
RGRS51-24144-01Blower Group
RGRT51-24144-01Electrical Group, Blower Group, Heat Exchanger-Burner Group
RGTS51-24144-01Blower Group


Replaces:
51-24144-01
