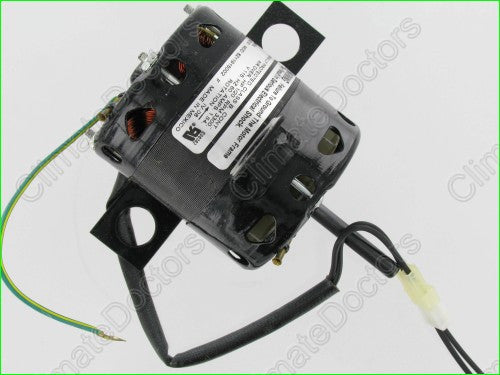

Carrier Bryant P251-2307 Inducer Blower Motor D1180

• Shaded pole
• Sleeve bearing

A: 3-3/4"; Agency Certification: UR/CSA; Bearing Type: Slv; Diameter: 3-3/8"; Efficiency: 35.0%; Enclosure: Open; F/L Amps: 1.54; HP: 1/20; Hz: 60; Insulation Class: B; Mounting: Bracket; Phase: Single; Rot.: CWSE; RPM: 3300; Service Factor: 1.00; Shaft Diam.: 5/16"; Shaft Length: 2-1/8"; Speeds: 1; Std. Mount. Pos.: Horizontal Only; Thermal Protection: Auto; Type: Shaded Pole; Volts: 115; Wt. Lbs.: 4.0;

Replacements for motors used in Carrier and BDP high-efficiency furnaces

replaces BDP #251-2916 and 251-2918, Carrier #HC23UZ121A used in BDP units #376B, 395B and 397H |S88-517 replaces BDP #P251-2307, Carrier #HC27UE120 used in unit #398A (90 plus) |Both motors feature special lead and plug assembly, stainless steel shaft and class B insulation |Rotation: CWSE
