Carrier Fan Coil Motor 3/4hp 115v 1075rpm 4spd CCWLE
Carrier Fan Coil Motor 3/4hp 115v 1075rpm 4spd CCWLE
No reviews
Regular price
$187.14 USD
Regular price
Sale price
$187.14 USD
Unit price
/
per

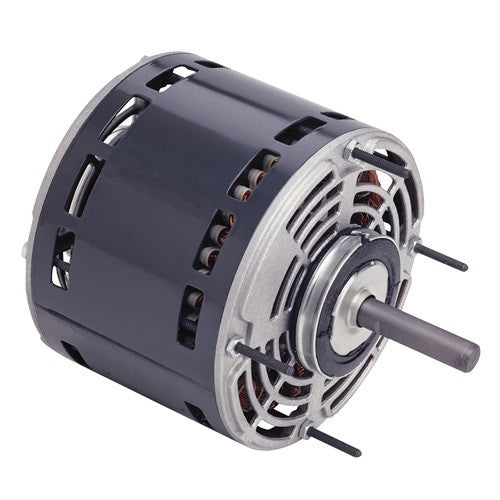

US Motors CA3415 Carrier Fan Coil Motor 3/4hp 115v 1075rpm 4spd CCWLE
| Model_Number: | CA3415 |
| PRODUCT NAME: | .75 HP - OPAO - 1075 |
| PHASETYPE: | 1_PERM SPLIT CAP |
| MOTOR ENCLOSURE: | OPAO |
| HORSEPOWER: | .75 |
| KILOWATTS: | 0.6 |
| POLES: | 6 |
| NUMBER SPEEDS: | 4 |
| RPM: | 1075 |
| HERTZ: | 60 |
| VOLTS PRIMARY: | 115 |
| VOLTS : | 115 |
| FRME : | 48 |
| SHAFT CODE: | Y |
| STATOR DIAMETER: | 5.5 |
| STACK: | 2.75 |
| MOUNTING: | RING/ STUD |
| MOTOR TYPE: | FHP |
| OPPOSITE END BEARING: | 6203 |
| SHAFT END BEARING: | 6203 |
| AMBIENT: | 40 |
| ROTATION: | CCW LEAD END REV |
| SERVICE FACTOR: | 1 |
| RUNCAPMFD: | 20 |
| RUNCAPVOLTS: | 370 |
| SHIPPING WEIGHT: | 17 |
| THERMAL PROTECTION: | AUTOMATIC RESET |
| BREAKDOWN TORQUE: | 80.24 |
| BREAKDOWN TORQUE UOM: | OZFT |
| LOCKED ROTOR TORQUE: | 16.37 |
| LOCKED ROTOR TORQUE UOM: | OZFT |
| INSULATION CLASS: | B |
| LOCKED ROTOR AMPS: | 18.84 |
| FULL LOAD AMPS PRIMARY: | 8.1 |
| SERVICE FACTOR AMPS PRIMARY: | 8.1 |
