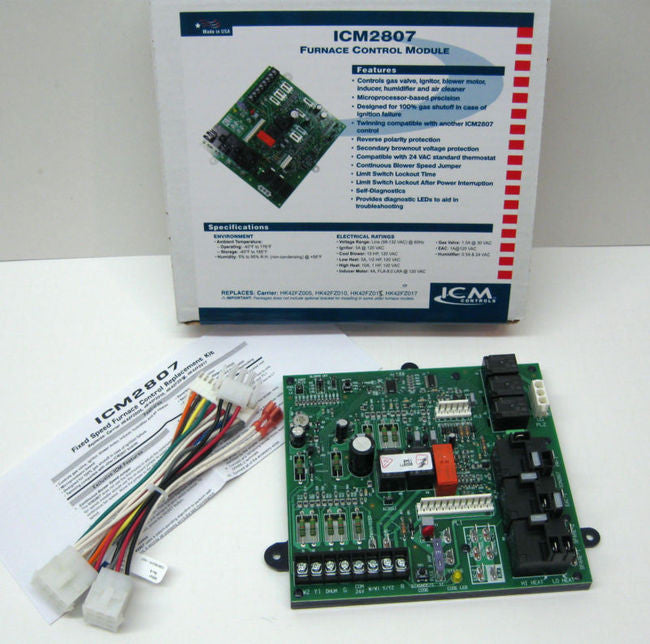

Carrier HK42FZ017 ICM2807 Furnace Control Board

Carrier HK42FZ017 ICM2807 Furnace Control Board

$338.74 USD
$338.74 USD
Sale Sold out

DETAILS:

The ICM2807 is a low cost fit, form and functional replacement for the Carrier HK42FZ017 furnace control board.
  • Controls gas valve, ignitor, blower motor, inducer, humidifier and air cleaner
  • Microprocessor-based precision
  • Designed for 100% gas shutoff in case of ignition failure
  • Twinning compatible with another ICM2807 control
  • Reverse polarity protection
  • Secondary brownout voltage protection
  • Compatible with 24 VAC standard thermostat
  • Continuous Blower Speed Jumper
  • Limit Switch Lockout Time
  • Limit Switch Lockout After Power Interruption
  • Self-Diagnostics
  • Provides diagnostic

WEIGHT/DIMENSIONS:

  • Weight: 1
  • Height: 1.5
  • Width: 6.5
  • Length: 7

SPECIFICATIONS:

Ambient Temperature
– Operating: -40°F to 176°F
– Humidity: 5% to 95% R.H. (non-condensing) @ +55°F

Voltage Range: Line (98 to 132 VAC) @ 60Hz
Ignitor: 5A @ 120 VAC
Cool Blower: 10 HP, 120 VAC
Low Heat: 5A, 1/2 HP, 120 VAC
High Heat: 10A, 1 HP, 120 VAC
Inducer Motor: 4A, FLA-8.0 LRA @ 120 VAC
Gas Valve: 1.5A @ 30 VAC
EAC: 1A@120 VAC
Humidifier: 0.5A & 24 VAC

REPLACES:

Carrier: HK42FZ017
