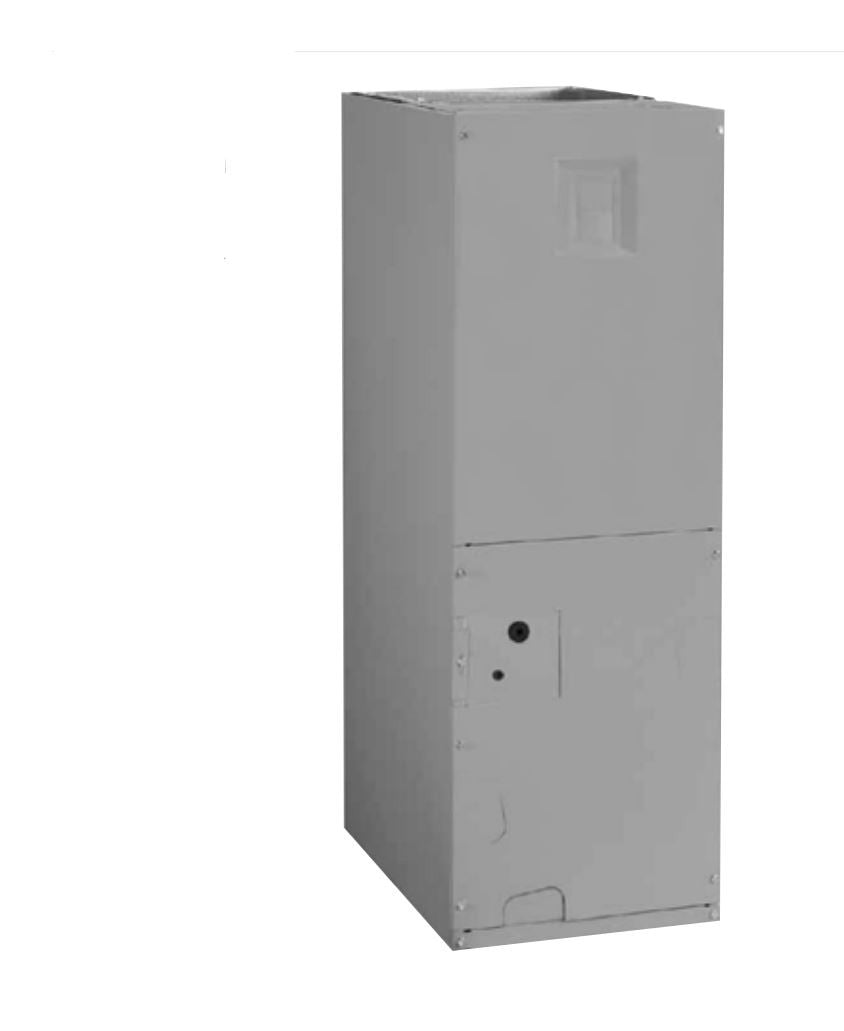

Century HMG60T1E-CY 5 Ton R410A Air Handler with TXV PSC 14

Century HMG60T1E-CY 5 Ton R410A Air Handler with TXV PSC 14 SEER 58K BTU

Matched to HC Condensers & Heat Pumps
AHRI Certified when properly matched, see www.AHRIdirectory.org
Multi-Position Design
Can be installed in upflow, downflow, horizontal or vertical position (downflow adapter needed)

Drain Pan
Durable plastic drain pan is corrosion-proof

Micro-Channel A-Coil
Units are A/C ready, coil uses all-aluminum microchannel technology for corrosion resistance

TXV Metering Device
Provides precise refrigerant control under varying load requirements

Advanced Circuit Board
Incorporates blower time delay relay, low voltage terminal strip, and heat strip sequencing

Control Board
Controls the sequencing of heat stages with sequence timing that can selected in the field

Quiet Operation
1" blower compartment insulation with R-4.2 factor reduces blower motor sound and prevents cabinet
sweating under difficult applications

Installation/Maintenance Convenience
Components can be easily accessed; built-in filter rack and plug-in wiring connections save installation and service time; breaker is accessible from the front when heat is applied

Durable Cabinet
Heavy duty galvanized steel cabinet has polyester urethane finish for maximum corrosion protection

Electric Heat
Plug-in heater kits are available in 5 kW to 30 kW

Meets 610.2A.2 Florida Building Code requirements for air leakage
