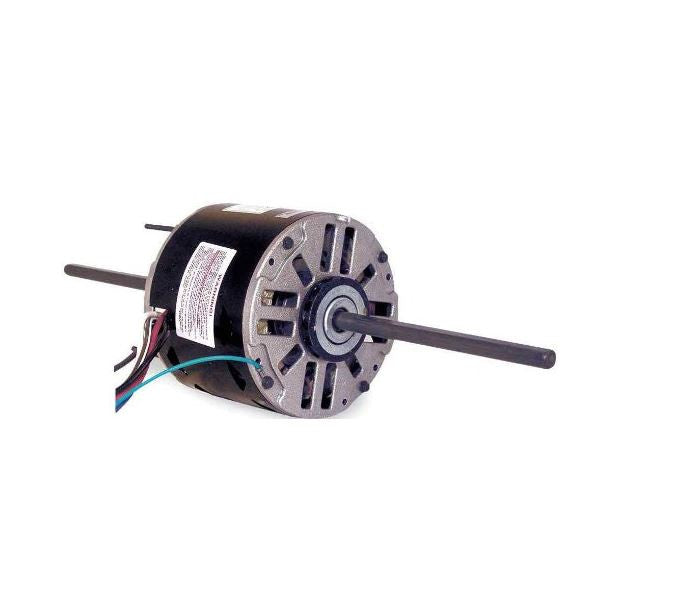

Century RA1006 1/8 hp Room Air Conditioner Dual Shaft Motor

Description:

Can be used in a variety of commercial and residential air conditioners, furnaces, air handlers, unit heaters and similar air over applications. Quiet sleeve bearings in heavy diecast end bell ; 3-speed ; Automatic reset thermal overload protector ; Long double shafts, extended thru-bolts; Packed with a heavy-duty length adapter kit which includes a ring bracket; 2-1/4" resilient rings, split rings for conversion to 2-1/2" and necessary hardware; Provision for mounting capacitors (capacitors and strap not included)

5-5/8" Double Shaft Fan/Blower Motor (208-230V, 1075 RPM, 1/8 HP)

Features:
Continuous air over

• Energy efficient
• Permanent Split Capacitor
• Sleeve Bearing
• 60 HZ
• Automatic Overload
• Single Phase
• 48 Frame
• Compact, rugged PSC, quiet sleeve bearings in heavy diecast end bell, 3-speed
• Automatic reset thermal overload protector, long double shafts, extended thru-bolts
• Packed with a heavy-duty length adapter kit which includes a ring bracket
• 2-1/4" resilient rings, split rings for conversion to 2-1/2" and necessary hardware

Diameter: 5-5/8"; HP: 1/2; Volts: 208-230; RPM: 1075; Speeds: 3; F/L Amps: 2.70; Efficiency: 67.3%; Shaft Diam.: 1/2"; Shaft Length: 7-11/16" x 6-13/16"; Rot.: Dbl. Shaft; Bearing Type: Slv; Wt. Lbs.: 18.4; Capacitor to Match: G21-933; NEMA Frame: 48; Type: PSC; Phase: Single; Hz: 60; Mounting: Resilient; Agency Certification: UR/CSA; Enclosure: OAO; Service Factor: 1.00; Insulation Class: B; Thermal Protection: Auto; Ambient Operating Temp. (Celsius): 60; Std. Mount. Pos.: Horizontal Only;

Type: Permanent Split Capacitor

Horse Power: 1/8

Bearings: Sleeve

Voltage: 208-230V

RPM: 1075

Enclosure Type: Semi-Enclosed

Rotation: CCWLE

Speeds: 3

Amperage: 0.75

Replaces S88-349
