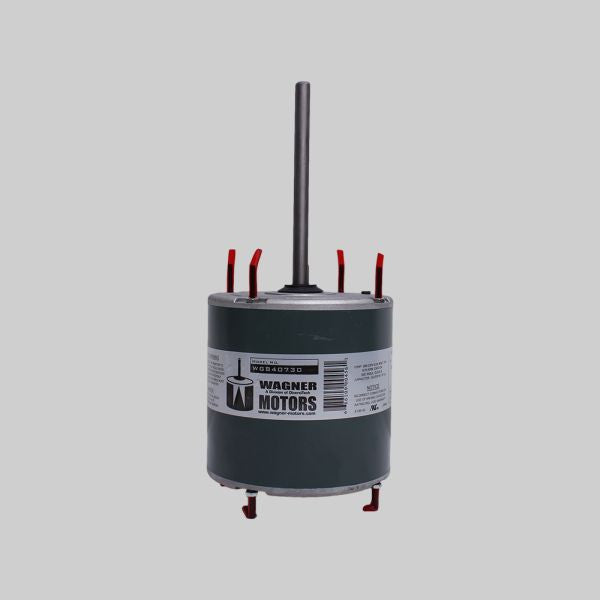

Condenser Fan Motor 1/2 HP 1075 RPM 208-230 V

Condenser Fan Motor 1/2 HP 1075 RPM 208-230 V

$96.82 USD
$96.82 USD
Sale Sold out

Installs with all standard 48 frame mounting brackets. Quiet, electrically reversible. Automatic Thermal Overload Protector and class B insulation. 30in. leads and 60 HZ with low power consumption. Standard 48 frame motor casing size. Drain holes with plugs on both end plates. Continuous air over on this motor and a 60 C Ambient Design with Extended Studs.

Motor Type
PSC
Enclosure
TEAO
H.P. (Max.)
1/2
Voltage
208-230
Speeds
1
Hz
60
Rotation
REV
RPM Range
1075
NEMA Frame Size
48
Phase
Single
Standards
CUL
FLA
3.5
Mount
All Angle
Bearing
Ball
Shaft Length Inches
6.5
Shaft Dia Inches
1/2
Thermal Protection
Auto
Ambient Deg C
60
Ins. Class
Class B
Capacitor Included
No
Capacitor Rating
10/370
MFG Name MFG #
Century/A.O. Smith FSE1056S
US Motors/Emerson 1862
Fasco D907
Genteq/Regal 3730
Marathon X414
Packard 43730
Nordyne/Partners Choice 01-0163
Rheem/Ruud Protech W51-12CJA1-01
Carrier/Totaline RCD P257-8730
Diversitech/Wagner WG840730
York/Source 2 S1-FHM3730
