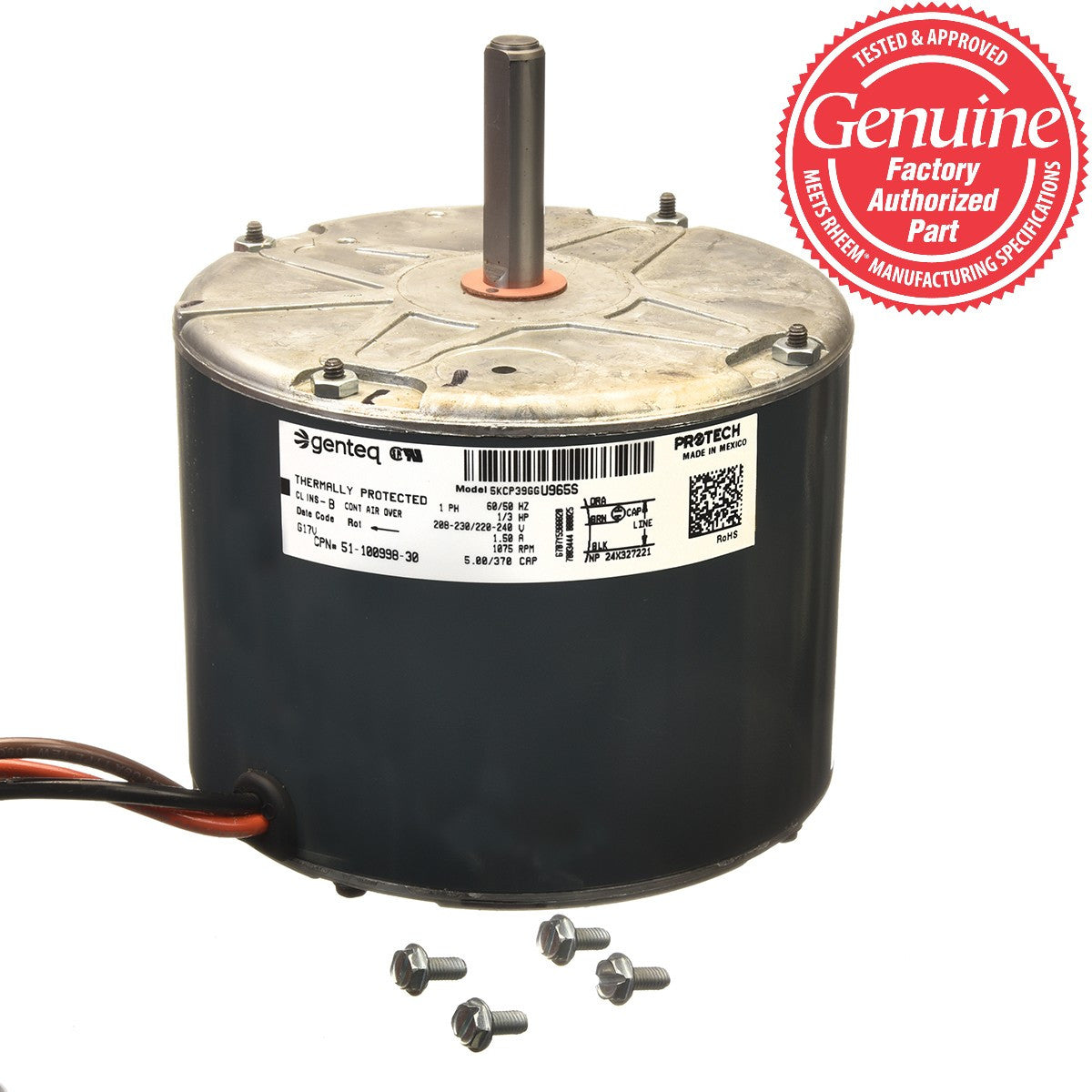

Condenser Motor 1/3 HP 208-230/1/50-60 1075 RPM 1 SPD

Rheem 51-100998-30 Condenser Motor - 1/3 hp 208-230/1/50-60 (1075 rpm/1 speed)

Notes »

The end boss mounting holes are NOT tapped on these motors. Quantity (4) self-tapping machine screws (10-32 x 7/16 in.) should be used for mounting. Normally, the original screws can be reused for replacement. If additional screws are required (NOT INCLUDED), 63-100404-01 is the part number used in production. Equivalent fasteners are also available in many hardware stores.

Technical Data »

• HP: 1/3
• No. of Speeds: 1
• High Speed (RPM): 1075
• Input Voltage (V): 208
• Input Voltage (V): 230
• No. of Phases: 1
• Frequency (Hz): 50
• Frequency (Hz): 60
• Rotation Direction (OSE): CCW
• Run Capacitor (uF/V): 5/370
• FLA at 208V (A): 1.50
• LRA at 208V (A): 3.00
• FLA at 220V (A): 1.50
• LRA at 220V (A): 3.00
• FLA at 230V (A): 1.50
• LRA at 230V (A): 3.00
• Shaft Diameter (in.): 1/2
• Motor Body Diameter (in.): 5-39/64
• Keyed/Flat Shaft Length (in.): 1-3/4
• Overall Shaft Length (in.): 2
• Motor Body Length (in.): 4-1/2
• Overall Motor Length (in.): 6-1/2
• Mounting: Shell-band
• Mounting: End-boss
• Frame Size: 48
• Bearing Type: Ball
• Application: Condenser
• Drive Type: Direct Drive

Where Used »

RAKB, SAKB, RALC, RAMC, RAMM, RANC, RAPC, RPKB, SPKB, RPLB, RPMD, RPMM, RPNK, RPPB, 10AJB, 10AJB, 10AJB, 10PJB, 12AJB, 12PJB, RAWE, RJNL-A, RJNL-C, RJPL-A, RJPL-C, RKNA, RKNL-A, RKNL-C, RKNN-A, RKNN-C, RKPL-A, RKPL-C, RKPN-A, RKQN-A, RKQN-C, RLNA, RLNL-A, RLNL-C, RLNN-A, RLNN-C, RLPL-A, RLPL-C, RLPN-A, RLQN-A, RLQN-C, RQKJ, RQMJ, RSMJ, SAWE, RKNL-G, RKPN-C, RLNL-G, RLPN-C, SADE

Model:Part:Page:

RAKB51-100998-05Fan Group

SAKB51-100998-05Fan Group

RALC51-100998-05Fan Group

RAMC51-100998-05Fan Group

RAMM51-100998-05Electrical Group, Fan Group

RANC51-100998-05Electrical Group, Fan Group

RAPC51-100998-05Electrical Group, Fan Group

RPKB51-100998-05Fan Group

SPKB51-100998-05Fan Group

RPLB51-100998-05Electrical Group, Fan Group

RPMD51-100998-05Electrical Group, Fan Group

RPMM51-100998-05Electrical Group, Fan Group

RPNK51-100998-05Electrical Group, Fan Group

RPPB51-100998-05Electrical Group, Fan Group

10AJB51-100998-05Electrical-Fan Group

10AJB51-100998-05Electrical-Fan Group

10AJB51-100998-05Electrical-Fan Group

10PJB51-100998-05Electrical-Fan Group

12AJB51-100998-05Electrical-Fan Group

12PJB51-100998-05Electrical-Fan Group

RAWE51-100998-05Fan Group

RJNL-A51-100998-05Fan Group

RJNL-C51-100998-05Fan Group 036-072

RJPL-A51-100998-05Fan Group

RJPL-C51-100998-05Fan Group 036-060

RKNA51-100998-05Electrical Group, Fan Group

RKNL-A51-100998-05Fan Group

RKNL-C51-100998-05Fan Group 036-060

RKNN-A51-100998-05Fan Group

RKNN-C51-100998-05Fan Group 036-060

RKPL-A51-100998-05Fan Group

RKPL-C51-100998-05Fan Group

RKPN-A51-100998-05Fan Group

RKQN-A51-100998-05Fan Group

RKQN-C51-100998-05Fan Group 036-060

RLNA51-100998-05Fan Group

RLNL-A51-100998-05Fan Group
