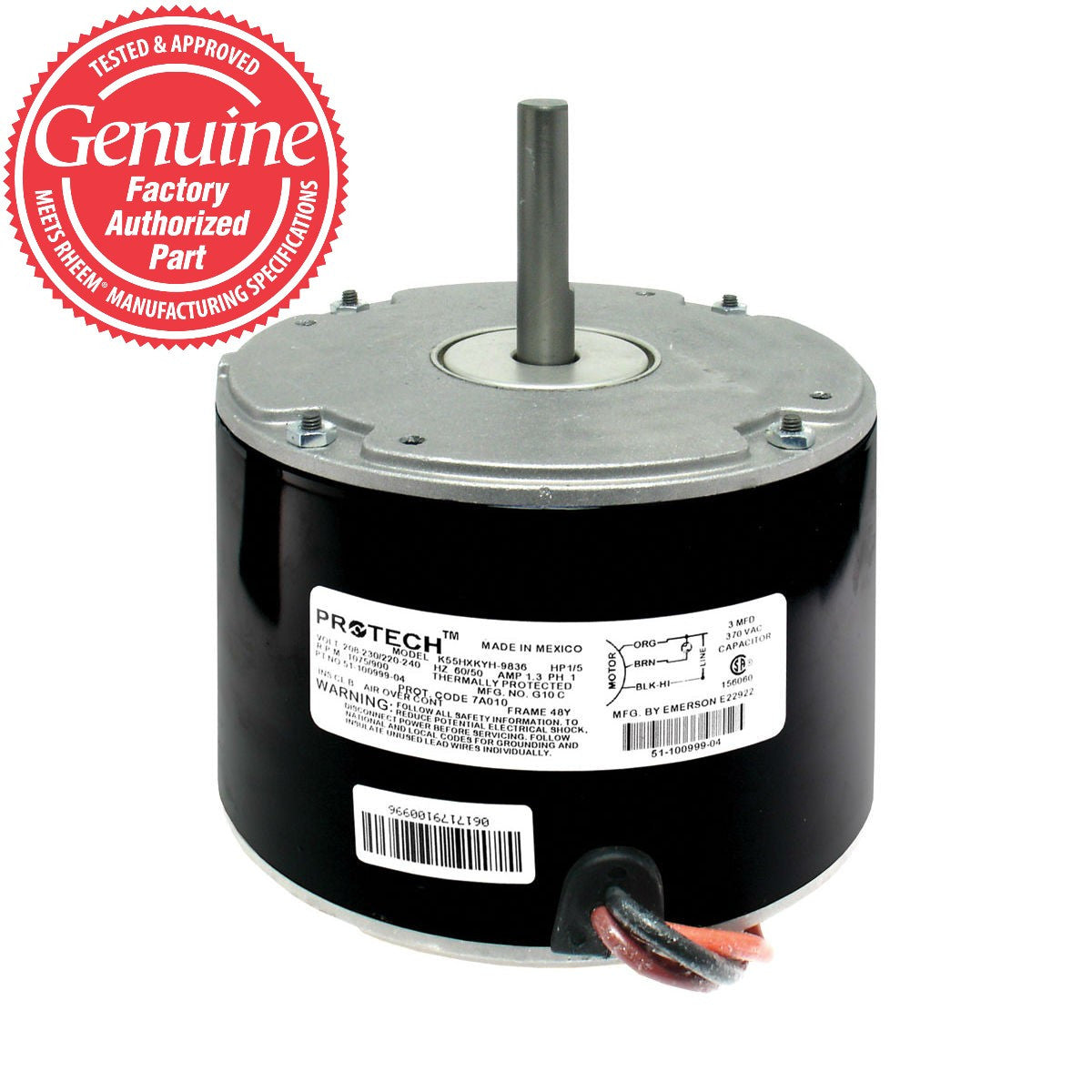

Condenser Motor 1/5 HP 1075 RPM 1 SPD 208-230/1/50-60

NOTE: The end boss mounting holes are NOT tapped on these motors. Quantity (4) self-tapping machine screws (10-32 x 7/16 in.) should be used for mounting. Normally, the original screws can be reused for replacement. If additional screws are required, 63-100404-01 is the part number used in production. Equivalent fasteners are also available in many hardware stores.

Product Specifications:

HP:1/5

No. of Speeds:1

High Speed (RPM):1075

Input Voltage (V):208

Input Voltage (V):220

Input Voltage (V):230

No. of Phases:1

Frequency (Hz):50

Frequency (Hz):60

Rotation Direction (OSE):CCW

Run Capacitor (uF/V):3/370

FLA at 230V (A):1.30

LRA at 230V (A):2.23

Shaft Diameter (in.):1/2

Motor Body Diameter (in.):5-5/8

Keyed/Flat Shaft Length (in.):1-3/4

Overall Shaft Length (in.):2-7/16

Motor Body Length (in.):4-1/16

Overall Motor Length (in.):6-1/2

Mounting:Shell-band

Mounting:End-boss

Frame Size:48

Bearing Type:Sleeve

Application:Condenser

Drive Type:Direct Drive

Product Usage:

This part is used in, but not limited to the following models: RAKB, SAKB, RAMC, RAMM, RPKB, SPKB, RPLB, RPMD, RPMM, 10PJB, SADE, 10AJB

Product History:

Replaces the following part #'s: 51-101515-04, 51-100999-09, 51-100998-04
