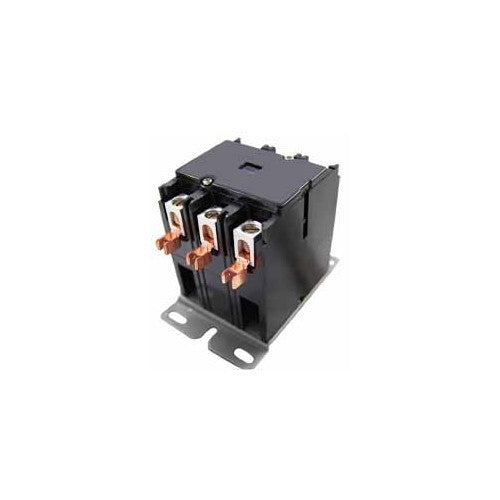

Contactor 3 Pole 40 Amps 24 Coil Voltage DP40243 C340A

Contactor 3 Pole 40 Amps 24 Coil Voltage DP40243 C340A

Regular price $20.96 USD
Regular price Sale price $20.96 USD
Sale Sold out

3 POLE Contactor, 24 Volt Coil, 40 Amp With Dust Cover. These three pole definite purpose electromagnetically operated contactors provide switching for starting of induction motors.

Shrouded coils on 3 pole (25A to 60A) models protect the coil from harsh environment factors.
- Moisture proof epoxy is used to encapsulate the 3 pole 75A through 120A coils.
- Multiple mounting holes and slots for convenient, interchangeable mounting with most competitive devices.
- Traditional design meets many needs.
- Full array of replacement coils, contact sets and accessories available.

Description 24 Vac 3 pole Contactor
Application PowerPro Definite Purpose Contactor
Coil Ratings Voltage 24 Vac
Poles 3
Electrical Connections (main) lug connectors
Contact Connections (coil) 1/4 in. quick-connects and #6 screws
Dimensions (in.) 3.1 high x 3.64 wide x 2.4 deep
Dimensions (mm) 79 high x 92 wide x 61 deep
Temperature Range (F) -4 F to +149 F
Temperature Range (C) -20 C to +65 C
Contact Electrical Ratings (AFL @ 277, 480, 600 Vac) 40 A @ 240/277 Vac, 480 Vac, 600 Vac
Contact Electrical Ratings (Resistive @ 277, 480, 600 Vac) 50 A @ 240/277 Vac, 480 Vac, 600 Vac
Approvals, Underwriters Laboratories Inc UL Component Recognized: File No. 14900, Guide No. NLDX2
Approvals, Canadian Standards Association Certified: File No. LR6535
Tradeline Value Tradeline

REPLACES- 13013, HONEYWELL DP3040A5002, MARS: 91431, TRANE: CTR01164, SIEMENS-FURNAS: 42CF35AJ, FASCO: 3M40-A, GENERAL ELECTRIC: CR353AD3BH1, SQUARE D: 8910L0-3, STEVECO: 90170, PRODUCTS UNLIMITED (OEM): 3100-30Q10XXXAH
