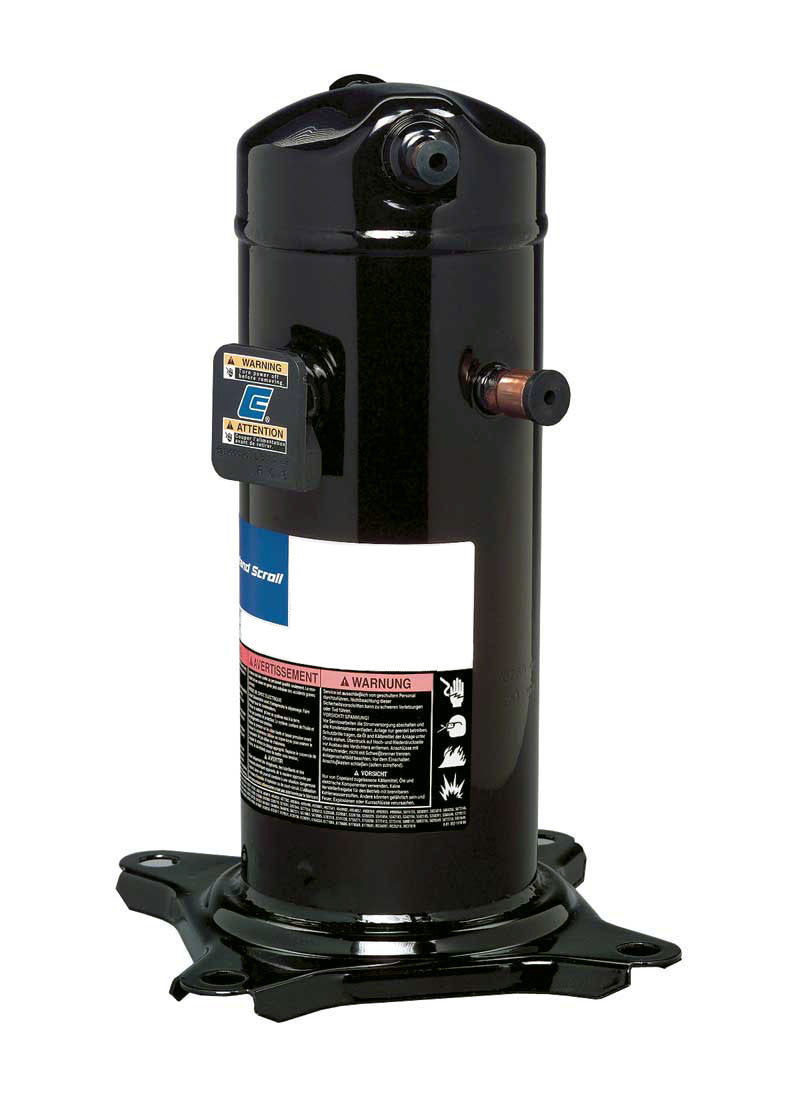

Single Phase Scroll Compressor 32600 BTU R22 208/230-1

Single Phase Scroll Compressor 32600 BTU R22 208/230-1

$1,219.59 USD
$1,219.59 USD
Sale Sold out

  • This compressor includes a molded plug wiring harness in the box. It does not need to be ordered separately.
  • The compressor rating label for model ZR32K5E-PFV-800 may read ZR32K5E-PFV-7M3. The difference in the suffix number is a result of internal handling procedures, and the compressors are identical in all aspects.



Capacity (BTU/HR): 32600
Type: Scroll
Refrigerant: R-22
Input Voltage (V): 208
Input Voltage (V): 230
No. of Phases: 1
Freq. (Hz.): 60
Run Capacitor (uF/V): 50/370
Start Kit: SK-A1
Kick Start: 42-TO5
Start Relay P/N: 42-25105-01
Start Capacitor (uF/V): 88-106/330
Start Capacitor Part Number: 43-17075-04
Rated Load Current (A): 17.1
Max. Continuous Current (A): 24.0
Locked Rotor Current (A): 87.0
Crankcase Heater Included?: No
Crankcase Heater Part Number: 44-17402-44
Soundwrap (Brinmar): 68-25217-10
Refrigerant Oil: POE (85-32CST)
Suction Line Location: 2
Suction Line Height (in.): 10-1/16
Suction Line Configuration: Stub Out
Suction Line Size (in.): 3/4
Discharge Line Location: 3
Discharge Line Height (in.): 14-1/4
Discharge Line Configuration: Stub Out
Discharge Line Size (in.): 1/2
Overall Compressor Height (in.): 15-1/4
Mounting Base Dimensions (in. x in.): 7-1/2 x 7-1/2


Model:Part:Page:
RAMC55-100835-09SCompressor Group
RSKJ55-100835-09SCoil Parts, Compressor Group
RSMJ55-100835-09SCompressor Group
RARA55-100835-14SCoil Parts, Compressor Group, Accessories
13SJ55-100835-14SCompressor Group
RSNJ55-100835-14SCompressor Group
13PJA55-100835-23SCompressor Group
13QJ55-100835-23SCoil Parts, Compressor Group
RHP13022A55-100835-23SCompressor Group (Single Phase)
RJNA55-100835-23SCompressor Group
RQNJ55-100835-23SCoil Parts, Compressor Group
RAND55-100835-25SCompressor Group 018-042
13AJA55-100835-25SCompressor Group 18-36
14AJA55-100835-25SCompressor Group
RCU13022A55-100835-25SCompressor Group 18-36
RKNA55-100835-25SCoil Parts, Compressor Group
RLNA55-100835-25SCompressor Group
RRNA-B55-100835-25SCompressor Group
RSNA-B55-100835-25SCompressor Group
13AJA55-102045-62SCompressor Group (757)
RCU13022A55-102045-62SCompressor Group 18-36
13AJA55-102045-70SCompressor Group (757)
RCU13022A55-102045-70SCompressor Group 18-36
13PJA55-105043-02Compressor Group
RHP13022A55-105043-02Compressor Group (Single Phase)
RQMA55-21737-48Coil Parts, Compressor Group
RQKA55-21737-50Compressor Group
RRKA-A55-21737-50Compressor Group
RSKA55-21737-50Compressor Group
URKA-A55-21737-50Compressor Group
FAFF55-23139-48Compressor Group
RAJB55-23139-48Coil Parts, Compressor Group
RAPB55-23139-48SCoil Parts, Compressor Group, Accessories
RAPC55-23139-48SCoil Parts, Compressor Group, Accessories
RQMA55-23139-48SCoil Parts, Compressor Group
RQLA55-23139-50SCoil Parts, Compressor Group
RQKA55-23139-50SCompressor Group
RRKA-A55-23139-50SCompressor Group
RSKA55-23139-50SCompressor Group
URKA-A55-23139-50SCompressor Group
FAFF55-23139-52Compressor Group
RAJB55-23139-52Coil Parts, Compressor Group
RAMA55-23139-52Compressor Group
RAMB55-23139-52Coil Parts, Compressor Group, Accessories
RANC55-23139-52Compressor Group, Accessories
RAPA55-23139-52Coil Parts, Compressor Group, Accessories
RPMB55-23139-52Compressor Group
RPMC55-23139-52Compressor Group
RPMD55-23139-52Compressor Group, Accessories
RPNK55-23139-52Compressor Group, Accessories
RPPB55-23139-52Coil Parts, Compressor Group
RRNA-A55-23139-52Coil Parts, Compressor Group
RSNA-A55-23139-52Coil Parts, Compressor Group
RPKA55-23140-13Compressor Group (1)
RPKB55-23140-13SCompressor Group, Accessories
SPKB55-23140-13SCompressor Group, Accessories
10PJB55-23140-13SCompressor Group

Replaces:
55-102045-62S
55-102045-62
55-105043-02
55-23139-50
55-100835-25S
55-23139-50S
55-100835-14
ZR32K5-PFV-800
55-ZR32K5-PFV-800
55-100835-14S
55-21737-50
55-100835-23
55-100835-09
55-23140-13
55-23139-48
55-23139-48S
55-102045-70
55-102045-70S
55-100835-23S
55-100835-09S
55-100835-25
55-102045-70S
55-21737-48
55-100835-14S
55-100835-14
55-23140-13S
ZR32K5-PFV-7M3
ZR32K5-PFV-7M3
ZR32K5E-PFV-7M3
