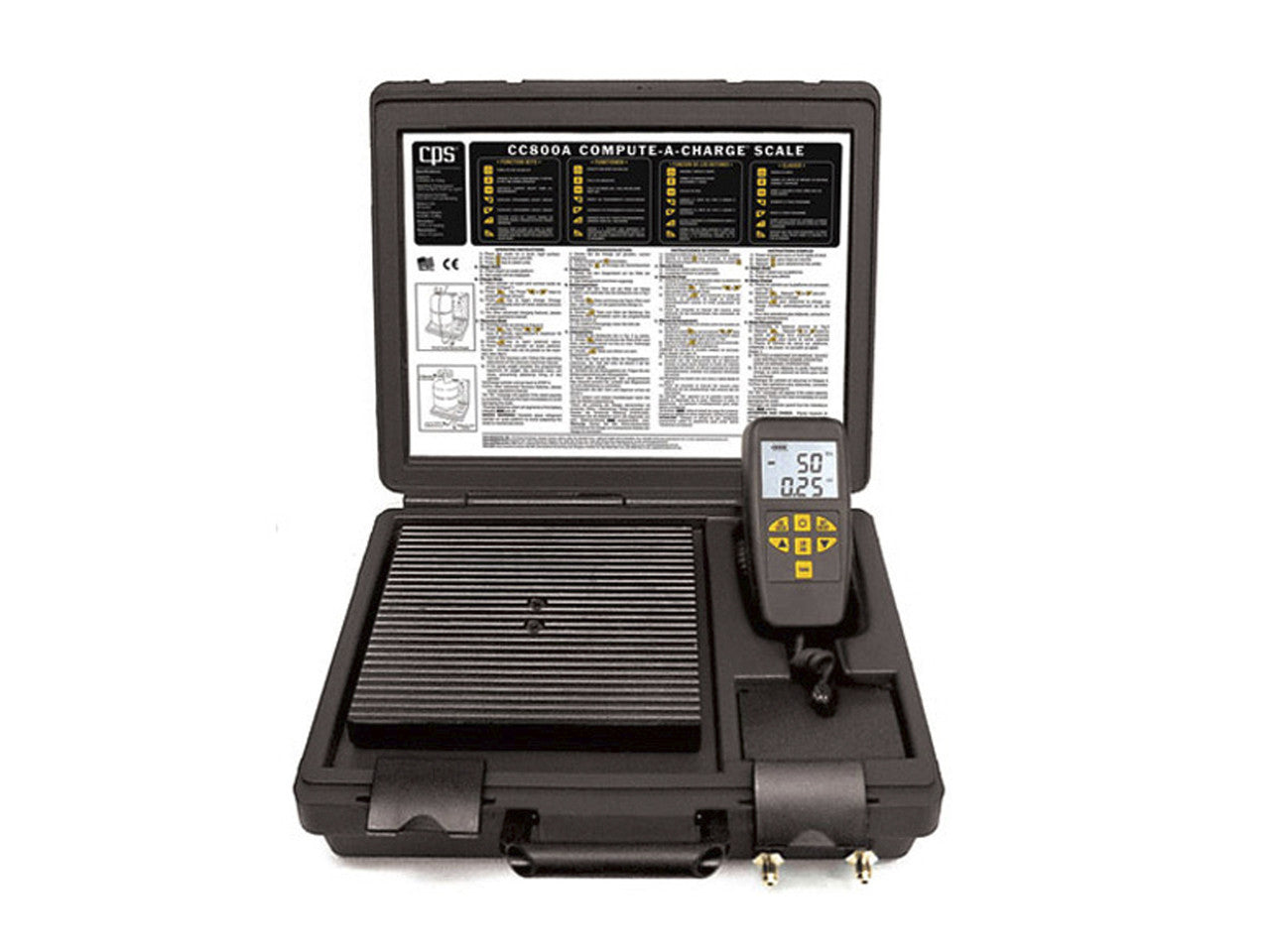

CPS CC800A Programmable Charging Scale R410 Compatible
CPS CC800A Programmable Charging Scale R410 Compatible
- Automatically transfers or recovers a preset amount of refrigerant, shuts off refrigerant flow when amount is obtained and audibly alerts the user
- 220 lb (100 kg) capacity / 0.25 oz (1 g) resolution
- Programmable for automatic charging or recovery via built-in solenoid valve
- Accommodates 30, 50, 90 & 125 lb cylinders
- Removable 8.75? platform for operation in or out of protective case
- Easy to read, fast response measurement
- Visual and mechanical overload protection
Features
- The world’s most advanced strain gage bridge load cell technology
- Unparalleled accuracy, precision and reliability
- Calibrated to strict NIST (National Institute of Standards & Technology) standards
- Ergonomic hand held remote controls with large, high contrast wide angle LCD displays
- Rugged cast aluminum platform and base assemblies for stability and long life
- Electronic and mechanical overload protected to withstand 150% of capacity
- Environmentally sealed and temperature compensated for reliable operation in extreme environments
- Automatic tare upon start up and manual zero function
- Magnetic backing on hand held display for mounting to metal services or 360° swivel hanging hook
- Durable protective transport case enables operation of scale in or out of enclosure
- Ideal for critical charging of systems large or small and all refrigerant recovery applications
- The widest range of programmable, manual, or wireless/hand-held configurations
CPS scales are in conformity with the following standards or other normative documents
- EN 61326:2006 (Electrical equipment for measurement, control and laboratory use – EMC Requirements)
- IEC 61000-4-2:2001 (Electrostatic Discharge Immunity Test)
- IEC 61000-4-3:2008 (Radiated , radio-frequency, electromagnetic field immunity test
- Designed and manufactured in the USA with U.S. and globally sourced components
Type |
Corded Handheld (with LCD Display) |
Programmable Solenoids |
Yes |
Maximum Load |
220 lb (100 kg) |
Platform Dimensions |
8.75? x 8.75? (22.3 x 22.3 cm) |
Display to Scale Connection |
Flexcord |
Auto-Off |
Automatic shut-off after 10 minutes of inactivity |
Smart Awake |
Scale displays last weight present at time of Auto-Off |
Transmission Range |
n/a |
Frequency Range |
n/a |
Power Source |
Remote: (2) 9V Alkaline (Included) |
Continuous Battery Life |
30 hr |
Display Resolution, oz (gm) Increments |
.25 oz /10 gm |
Weight Accuracy |
0.05% of reading, or ± 0.25 oz/10 gm (whichever greater) |
Unit Weight |
8.5 lb (3.9 kg) |
Display Flex Cord Length |
6’ Extended |
Maximum Working Pressure |
500 Psig 34,5 Bar |
Maximum Operating Differential |
485 Psig 33,5 Bar |
Rubber Platform Cover |
No |
Weight Readout |
lb & oz, or kg & gm |
Protective Case |
Molded Carrying Case |
Tare (Empty) Weight Mode |
Yes |
Overload Protection |
Mechanical (Internal Overload Stop) |
Battery Status Indicator |
3 Segment Symbol (Display) |
Remote Control Mount |
Magnetic Back and 360° Swivel Hook |
Operating Temperature Range |
14°F to 122°F (-10°C to 50°C) |
Operating Humidity Range |
0% to 95% (Non-Condensing) |
Approvals |
CE, C-Tick |
