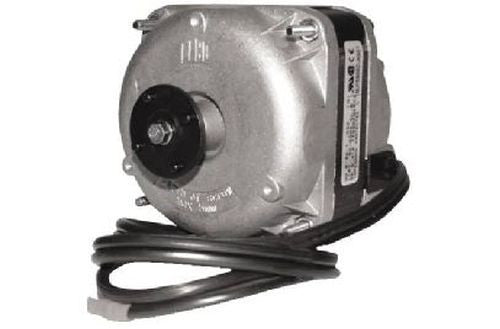

EC9W115 9W Refrigeration Fan Motor CCW 115V 1/83 HP

These motors are widely used in the HVAC & Refrigeration industry. These motors are suitable for all angle operation
and have multiple mounting features. The NU series motors are used in industrial and commercial refrigeration for condensing and evaporating units, ventilating units, freezers, walk-in and reach-in coolers, food and beverage coolers and many other fan duty applications.

Features:

• Single speed
• Output 16 watts
• Totally enclosed
• Continuous air over
• 1 year Limited warranty

Specifications:

• 16 W
• Rotation: CCW
• 1/47 HP
• 115 Volts
• 0.89 Amps
• Thermally protected
• All Angle, sleeve bearing
• Class B insulation
• 50/60 Hz
• Standard operating temperature: -40°F to 104°F (-40°C to 40°C)
• 3 tapped holes @ 120° & 2 @ 180°
• Single side pad mounting
• 4 shaft end studs
• UL Recognized, CSA and CE Certified
