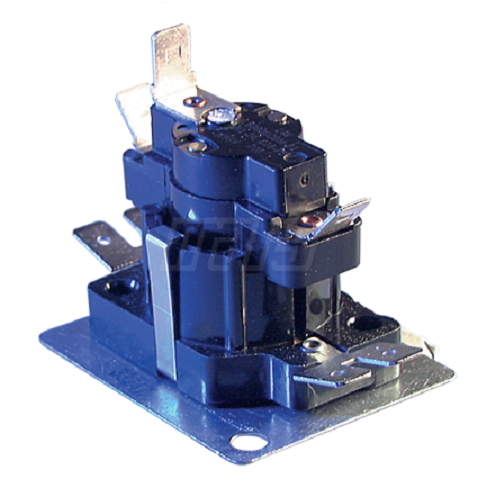

Electric Heat Sequencer Klixon 60000COM-21 On 1-24 Off 15-75

Electric Heat Sequencer Relay On 1-24 Off 1-75
Function:
This is a Heat Sequensor for an electric furnace. Sequencers bring an Electric Furnace’s heating elements on in stages to maximize efficiency and minimize cost. ***Universal replacement sequencers do NOT always look like the OEM. ANY contacts—except M1 and M2—can be used as auxiliary contacts (they don’t need to be wired up/connected for the sequencer to function correctly)***
DISCLAIMER: Manufacturer’s wiring diagram and instructions should always be used when replacing sequencers in any heating equipment and supercede any information offered herein.
Replaces Old Part #s:
Global 24ZC-15
Therm O Disc12S50305252
Kilxon 60000COM-21


Specifications:
Type (1)SPDT
Number of Switches 2
Main Switch on Time(Sec) 1-24
Main Switch Off Time (Sec) 15-75
Number of Timings 1
FLA @ 240V 25
Control Volts 24
