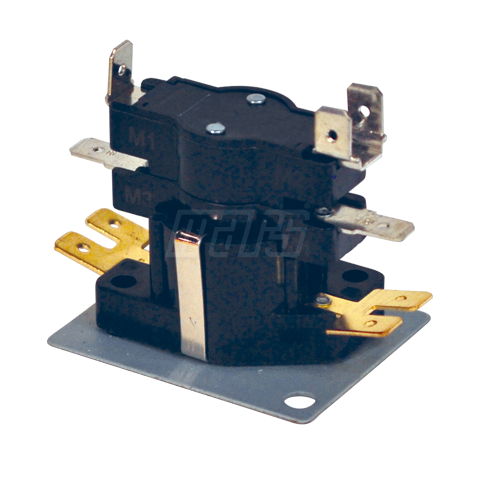

Electric Heat Sequencer Klixon 60000EOM-8 On 1-24 Off 45-75

Mars Klixon Heat Sequencer Relay 33244 60000EOM-8

Function:

This is a Heat Sequensor for an electric furnace. Sequencers bring an Electric Furnace’s heating elements on in stages to maximize efficiency and minimize cost. ***Universal replacement sequencers do NOT always look like the OEM. ANY contacts—except M1 and M2—can be used as auxiliary contacts (they don’t need to be wired up/connected for the sequencer to function correctly)***

DISCLAIMER: Manufacturer’s wiring diagram and instructions should always be used when replacing sequencers in any heating equipment and supercede any information offered herein.

Replaces Old Part #s:

Klixon 60000EOM-8

Mars 33244

Specifications:

Type (1)DPST

Number of Switches 2

Main Switch on Time(Sec) 1-24

Main Switch Off Time (Sec) 45-75

Number of Timings 1

FLA @ 240V 25

Control Volts 24
