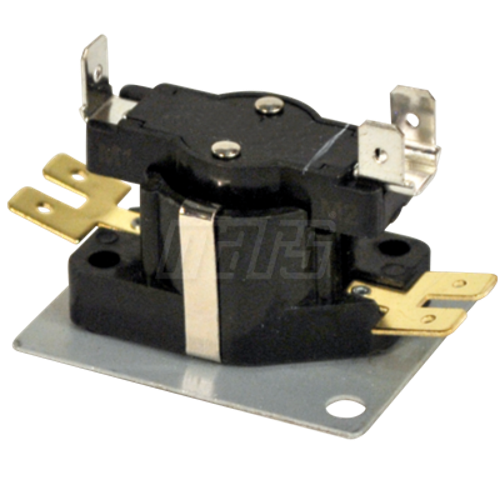

Electric Heat Sequencer WR 24A34-1 On 1-24 Off 45-75

Mars White Rodgers Therm O Disc Gemline Supco Klixon Watsco Interstate Elec Diversitech Heat Sequencer Relay HDR-101 GS101 24A34-1 24AC-1 IES24A34-1 6000A0NI-98 Q101 15SH1309571 TDR10

This is a Heat Sequencer for an electric furnace. It has a 24 volt coil.

Function:

Relays are switches that open and close circuits electrically. In most HVAC equipment a low voltage coil relay (24 vac) is energized in order to open or close a higher voltage (usually 120-240) circuit.

Replaces Old Part #s:
Diversitech HDR-101

Gemline GS101

White Rodgers 24A34-1

Global 24AC-1

Interstate Elec IES24A34-1

Kilxon 6000A0NI-98

Supco Q101

Therm O Disc 15SH1309571

Watsco TDR10

Specifications:

Type (1)SPST

Number of Switches 1

Main Switch on Time(Sec)1-24

Main Switch Off Time (Sec) 45-75

Number of Timings 1

FLA @ 240V 25

Control Volts 24
