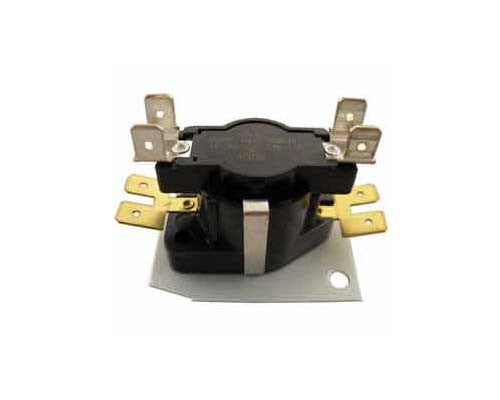

Electric Heat Sequencer WR 24A34-2 On Delay 30-90 Off Delay 1-30

Electric Heat Sequencer WR 24A34-2 On Delay 30-90 Off Delay 1-30

$11.15 USD
$11.15 USD
Sale Sold out

Electric Heat Sequencer WR 24A34-2 On 30-90 Off 1-30

  • Contact ratings: up to 25 Amps at 120 or 240 Volts and 12.5 Amps at 480 Volts
  • Full-load rated auxiliary contacts
  • Standard operating ambient between -50°F (-45.5°C) and 165°F (73.8°C)
  • Shock and vibration resistant
  • Solid state
  • Quick-connect terminals
  • Mounts in any position


Specifications:

Timings 1
Switches 1
Resistive (Non-Inductive) at 480 VAC Watts 6000
Motor Ratings (Inductive) at 120 VAC Full Load 10.0A
Pilot Duty at 120 VAC 125VA
Resistive (Non-Inductive) at 480 VAC Amps 12.5
Timings - Off M5-M6 1-30
Motor Ratings (Inductive) at 480 VAC Locked Rotor 18.0A
Timings - On M5-M6 30-90
Motor Ratings (Inductive) at 240 VAC Full Load 5.0A
Motor Ratings (Inductive) at 240 VAC Locked Rotor 30.0A
Resistive (Non-Inductive) at 120 VAC Amps 25.0
Resistive (Non-Inductive) at 240 VAC Watts 6000
Motor Ratings (Inductive) at 480 VAC Full Load 3.0A
Motor Ratings (Inductive) at 120 VAC Locked Rotor 60.0A
Resistive (Non-Inductive) at 240 VAC Amps 25.0
Resistive (Non-Inductive) at 120 VAC Watts 3000
Pilot Duty at 240 VAC 125VA
Pilot Duty at 480 VAC 480VA
Type SPST

Replaces:

Therm-O-Disc 12S20
White-Rodgers 24A34-2
White-Rodgers 24A342
Global 24ZC-2
Mars 33222
Mars 33842
Carrier 40CF680020
Klixon 51172-22
Klixon 5117222
York 525-37322-000
Klixon 60000AOME17
Klixon 6000A0NI-97
Robertshaw 611-242
Klixon A012
Diversitech DGS102
White-Rodgers ff77-5410
Gemline GS102
Interstate Electric IES24A34-2
Napco NS102
Supco Q102
Watsco TDR15
A1 Components TDR15
Zettler ZC24A34-2
