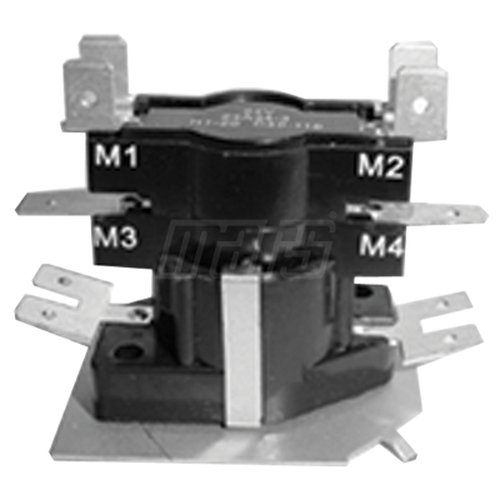

Electric Heat Sequencer WR 24A34-3 On 1-20 Off 40-110

Replacement Elec Heat Sequencer Relay 1056789 1056789 1056789 1256504 1256504 24A34-3 24ZC-3 33244 33844 BT1256504 BT1256504 DGS103 E017 F77-5411 GS103 HN67QC005 HN67QC005 HQ1056789 HQ1056789 HQ1056789 IES24A34-3 NS103 Q103 TDR20 ZC24A34-3 HS24A343

Function:

This is a Heat Sequencer for an electric furnace. Sequencers bring an Electric Furnace’s heating elements on in stages to maximize efficiency and minimize cost. ***Universal replacement sequencers do NOT always look like the OEM. ANY contacts—except M1 and M2—can be used as auxiliary contacts (they don’t need to be wired up/connected for the sequencer to function correctly)***

DISCLAIMER: Manufacturer’s wiring diagram and instructions should always be used when replacing sequencers in any heating equipment and supersede any information offered herein.

Specifications

Type (1)DPST

Number of Switches 2

Main Switch on Time(Sec) 1-20

Main Switch Off Time (Sec) 40-110

Number of Timings 1

FLA @ 240V 25

Control Volts 24
