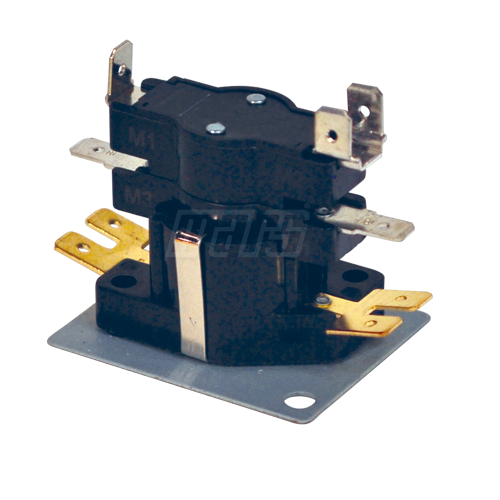

Electric Heat Sequencer WR 24A34-4 On 30-75 Off 1-40

Electric Heat Sequencer On 30-75 Off 1-40

Function:

This is a Heat Sequencer for an electric furnace. Sequencers bring an Electric Furnace’s heating elements on in stages to maximize efficiency and minimize cost. ***Universal replacement sequencers do NOT always look like the OEM. ANY contacts—except M1 and M2—can be used as auxiliary contacts (they don’t need to be wired up/connected for the sequencer to function correctly)***

DISCLAIMER: Manufacturer’s wiring diagram and instructions should always be used when replacing sequencers in any heating equipment and supercede any information offered herein.

Replaces Old Part #s:

White-Rodgers 24A34-4 77-5412

Global 24ZC-4

Mars 33245 33845

Klixon 51172-22

York 525-37325-000

Goodman BT1256504

Diversitech DGS104

Gemline GS104

Carrier HN67QC006

ICP HN67QC006

Interstate Electric IES24A34-4

Napco NS104

Supco Q104

Watsco TDR25

Zettler ZC24A34-4

Specifications:

Type (1)DPST

Number of Switches 2

Main Switch on Time(Sec) 30-75

Main Switch Off Time (Sec) 1-40

Number of Timings 1

FLA @ 240V 25

Control Volts 24
