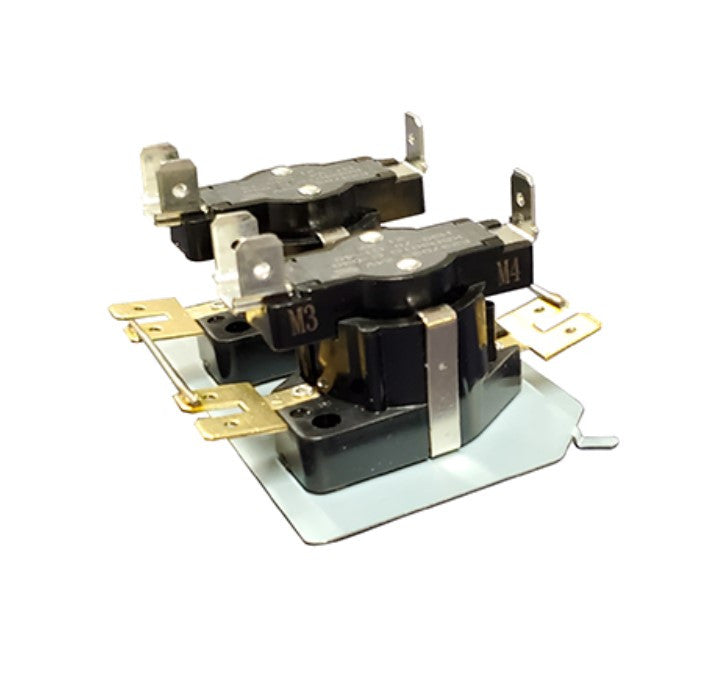

Electric Heat Sequencer WR 24A34-7 On 1-24 Off 45-75

Electric Heat Sequencer Relay On 1-24 Off 45-75 Aux On 30-70 Aux Off 1-40

Function:

This is a Heat Sequensor for an electric furnace. Sequencers bring an Electric Furnace’s heating elements on in stages to maximize efficiency and minimize cost. ***Universal replacement sequencers do NOT always look like the OEM. ANY contacts—except M1 and M2—can be used as auxiliary contacts (they don’t need to be wired up/connected for the sequencer to function correctly)***

DISCLAIMER: Manufacturer’s wiring diagram and instructions should always be used when replacing sequencers in any heating equipment and supercede any information offered herein.

Replaces Old Part #s:
White-Rodgers 24A34-7
Honeywell R8330E

Klixon 51172-22

Therm O Disc 15SH11309830

Therm O Disc 309574
White-Rodgers 24A52-101
