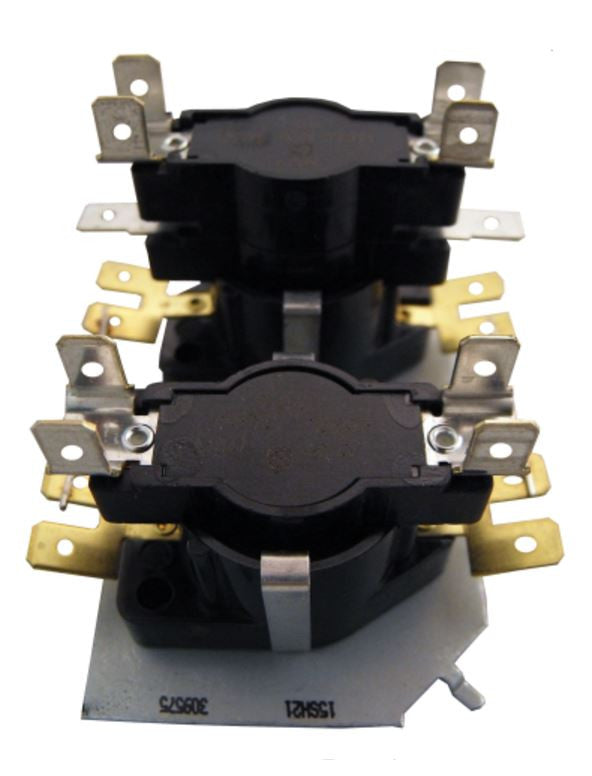

Electric Heat Sequencer WR 24A35-5 24A34-54 On 1-110 Off 1-110

Elec Heat Sequencer Relay On 1-110 Off 1-110

Function:

This is a Heat Sequencer for an electric furnace. Sequencers bring an Electric Furnace’s heating elements on in stages to maximize efficiency and minimize cost. ***Universal replacement sequencers do NOT always look like the OEM. ANY contacts—except M1 and M2—can be used as auxiliary contacts (they don’t need to be wired up/connected for the sequencer to function correctly)***

DISCLAIMER: Manufacturer’s wiring diagram and instructions should always be used when replacing sequencers in any heating equipment and supersede any information offered herein.

Specifications

Applications

Cross Reference

Replacement Part: 3120A357

Manufacturer :Coleman

Replacement Part: 525-37327-000

Manufacturer :York

Replacement Part: ZC24A34-5

Manufacturer :Zettler

Replacement Part: IES24A34-5

Manufacturer :Interstate Electric I-9

Replacement Part: 24A35-5 AND 24A34-54

Manufacturer :White Rodgers

Replacement Part: 51172-32

Manufacturer :Klixon

Replacement Part: 33232 and 33832

Manufacturer :Mars

Replacement Part: 24CZ-5

Manufacturer :Global
