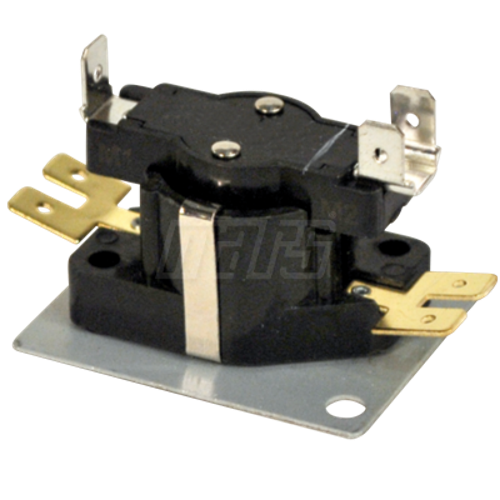

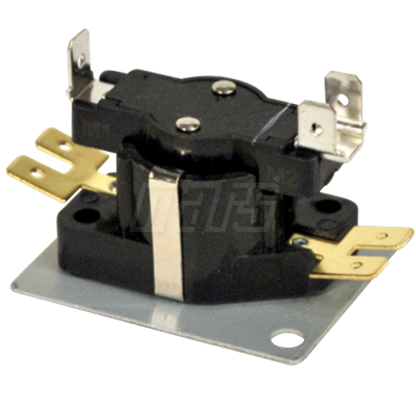

Electric Heat Sequencer WR 24A51-1 On 1-60 Off 1-45

Electic Heat Sequencer Relay
TDR-10 5701 33243 15SH1309831 309571 60000AOM A012 6000A0NI-97 24A51-1 Q101 TDR-10

This is a Heat Sequensor for an electric furnace. It has a 24 volt coil.

Function:

Relays are switches that open and close circuits electrically. In most HVAC equipment a low voltage coil relay (24 vac) is energized in order to open or close a higher voltage (usually 120-240) circuit.

Replaces Old Part #s:

Specifications:

Type (1)SPST

Number of Switches 1

Main Switch on Time(Sec)1-60

Main Switch Off Time (Sec) 1-45

Number of Timings 1

FLA @ 240V 25

Control Volts 24
