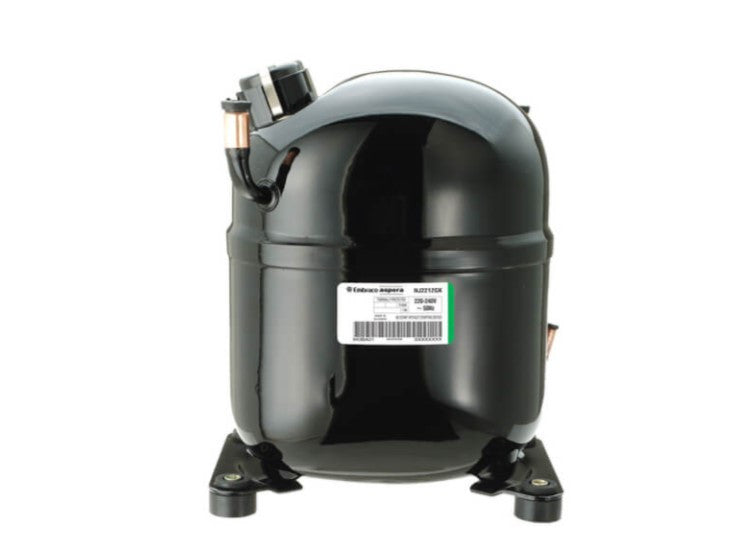

Embraco NJ2192GK1 4,500 BTU 1 PH Reciprocating Compressor Low Temp R-404A (115V)

Embraco NJ2192GK1 4,500 BTU 1 PH Reciprocating Compressor Low Temp R-404A (115V)

$629.38 USD
$629.38 USD
Sale Sold out

GENERAL DATA

Model

 NJ2192GK

Type

 Hermetic Reciprocating

Technology

 ON/OFF

Compressor Application

 LBP

Expansion Device

 Capillary Tube or Expansion Valve

Compressor Cooling

 Fan

HP

 1 1/4

Starting Torque

 HST

Plant

 SLOVAKIA

ELECTRICAL DATA

Start Winding Resistance

 5.66 Ω at 25°C

Run Winding Resistance

 1.21 Ω at 25°C

MECHANICAL DATA

Displacement

 26.11 cm³

Oil Charge

 750 ml

Oil Type

 ESTER

Oil Viscosity

 ISO22

Weight

 21.8 Kg

ELECTRICAL COMPONENTS

Start Capacitor

 88-108 μf/330 V

Run Capacitor

 20.0 μf/440 V

CSR CSIR BOX

 Yes

Starting Device Description

 RVA2L3C

Overload Protection

 3HM198-105 (internal)

EXTERNAL CHARACTERISTICS

Base Plate

 LARGE

Connector

 Internal Diameter Shape Material

Suction

 12.77 mm VERTICAL COPPER

Discharge

 8 mm SLANTED J COPPER

Process

 6.42 mm VERTICAL COPPER

Features

Specifications

Documents
