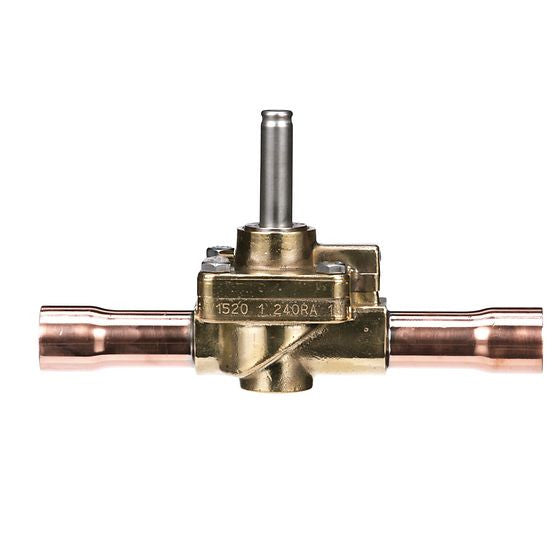

Emerson 240RA Series 9T7MVLC Refrigerant Solenoid Valve

The 240RA is a 2-way, normally closed diaphragm valve. 240RA valves are used for liquid, suction, and hot gas service.

• One coil fits all valve sizes
• Can be brazed into the line without disassembly
• PTFE diaphragm for high temperature applications
• Extended ends for easy installation (standard)
• Long-life molded coils
• Mounting stud models can be field converted to manual stem


• Valve Type Diaphragm, 2-Way, Normally Closed
• Port Size 9/16”
• Inlet Connection Size 7/8” ODF Extended End
• Outlet Connection Size 7/8” ODF Extended End
• Special Feature Manual Stem
• Maximum Fluid Temperature 250°F
• Maximum Working Pressure 680 psig
• MOPD 300 psig
• Approvals UL/CUL File Number MP604
