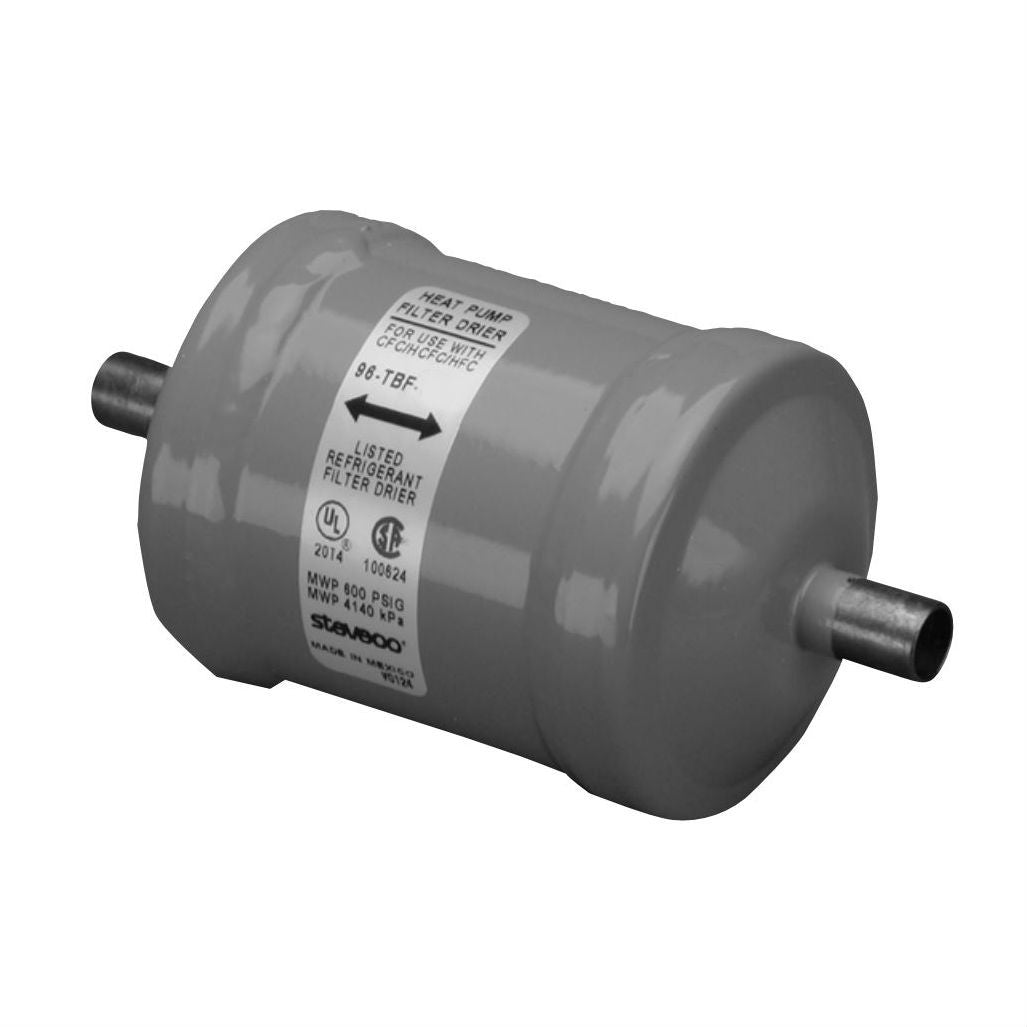

Emerson 96-TBF164S Heat Pump Drier Bi-Flow 16 CI 1/2?

Bi-directional driers designed to provide complete protection to your heat pump or reverse cycle system. This compact design filters contaminants, removes moisture and acids during the cooling and heating cycles during winter and summer. Internal check valves prevent the release of collected contaminants when the heat pump cycles from the heating to cooling modes.

• Proven, nylon internal check valves
• Solid block desiccant core: a composite of molecular sieve and activated alumina
• Provides high moisture, organic and inorganic acid removal
• The addition of charcoal to the desiccant core allows for the removal of wax that may occur at low evaporator temperatures
• Corrosion resistant paint

Type : Bi-Directional, 96-TBF Series
Connection Size : 1/2 Inch
Connection Type : ODF
Maximum Working Pressure : 500 psig
Minimum Burst Pressure : 2500 psig
Flow Capacity (Cv) : 11.7 Ton (R-22) At 2 psi
Material : Solid Copper Fittings, Nylon Check Valves
Dimensions : 6.34 Inch Length X 2.63 Inch Width
Standards : UL File Number SA7175, CSA File Number LR100624, ARI Standard 710-86
For Use With : Heat Pump Or Reverse Cycle System
