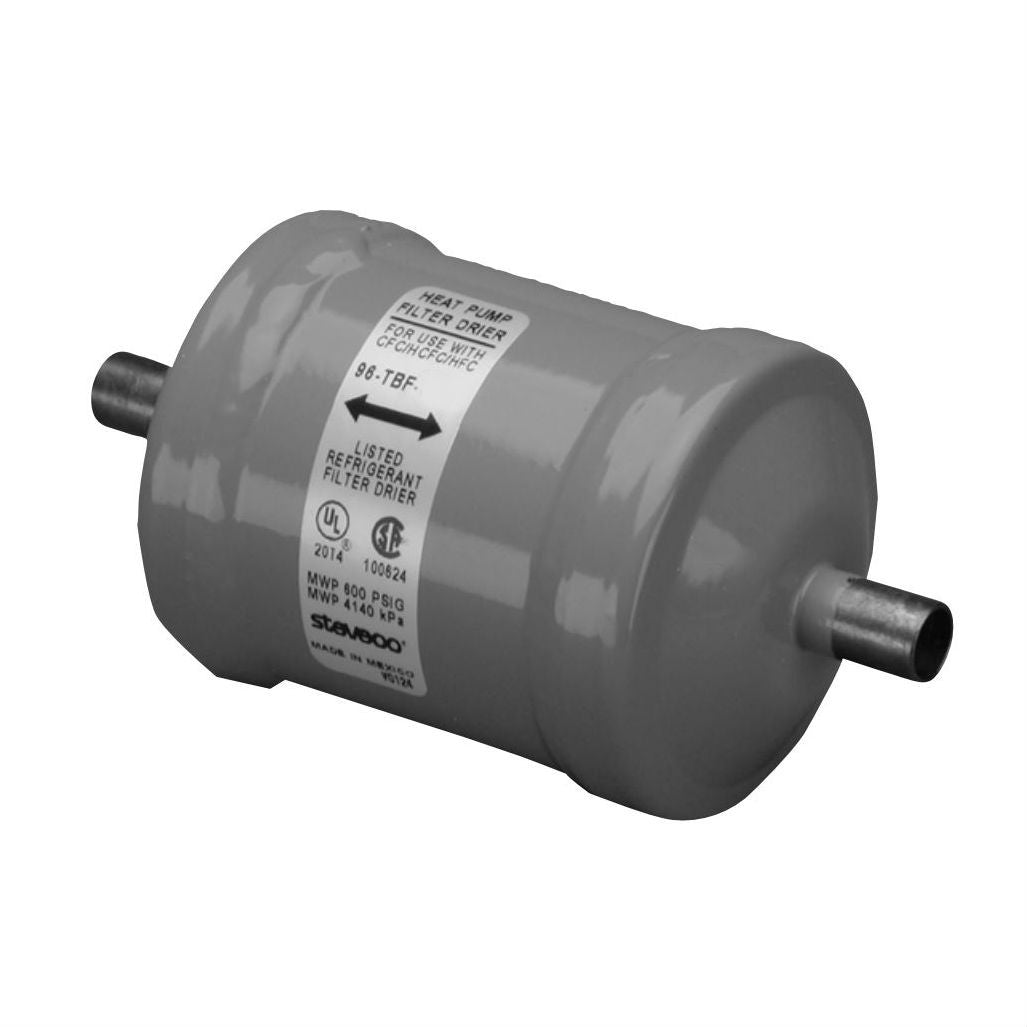

Emerson TBF164S Heat Pump Drier Bi-Flow 16 CI 1/2”

Bi-directional driers designed to provide complete protection to your heat pump or reverse cycle system. This compact design filters contaminants, removes moisture and acids during the cooling and heating cycles during winter and summer. Internal check valves prevent the release of collected contaminants when the heat pump cycles from the heating to cooling modes.

Features

• Proven, nylon internal check valves
• Solid block desiccant core: a composite of molecular sieve and activated alumina
• Provides high moisture, organic and inorganic acid removal
• The addition of charcoal to the desiccant core allows for the removal of wax that may occur at low evaporator temperatures
• Corrosion resistant paint

Specifications

• Type : Bi-Directional, 96-TBF Series
• Connection Size : 1/2 Inch
• Connection Type : ODF
• Maximum Working Pressure : 500 psig
• Minimum Burst Pressure : 2500 psig
• Flow Capacity (Cv) : 11.7 Ton (R-22) At 2 psi
• Material : Solid Copper Fittings, Nylon Check Valves
• Dimensions : 6.34 Inch Length X 2.63 Inch Width
• Standards : UL File Number SA7175, CSA File Number LR100624, ARI Standard 710-86
• For Use With : Heat Pump Or Reverse Cycle System
