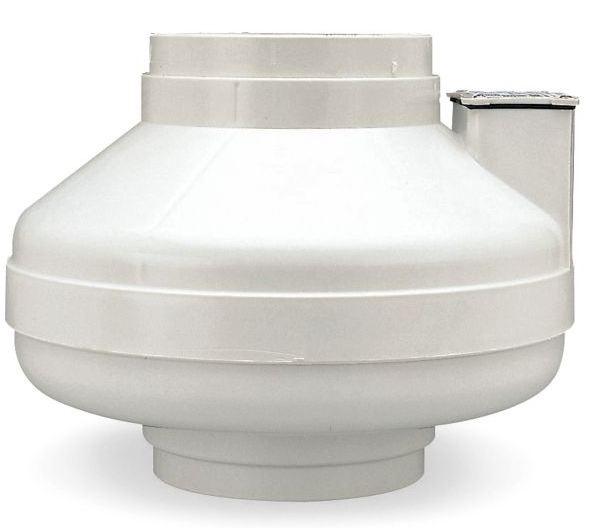

FanTech RN1 Radon Mitigation Fan 134 CFM

HP Series Fans are specially designed with higher pressure capabilities for Radon Mitigation applications. Fantech has developed the HP Series fans specifically to suit the higher pressure capability requirements needed in Radon Mitigation applications.

Features:

Housing

• UV resistant, UL listed durable plastic
• UL Listed for use in commercial applications
• Factory Sealed to prevent leakage
• Watertight electrical terminal box
• Approved for mounting in wet locations- such as outdoors

Motor

• Totally enclosed for protection
• High efficiency EBM motorized impeller
• Automatic reset thermal overload protection
• Avaerage life expectancy of 7-10 years under continuous load conditions

Warranty

• 5 Year Full Factory Warranty

Performance Data:

Volts: 115

Wattage Range: 14-20

Max Amps: 0.17

CFM (at static pressure)

• 0"

  .50"

  .75"

  1.0"

  1.25"

  1.5"

  1.25"

  1.5

  134

  68

  19

  -

  -

  -

  -

  -

Max Pressure: 0.84"

Fans are attached to PVC pipe using flexible couplings.
For 4? PVC pipe use Indiana Seals #156-44, Pipeconx PCX 56-44 or equivalent.
For 3? PVC pipe use Indiana Seals #156-43, Pipeconx PCX 56-43 or equivalent
