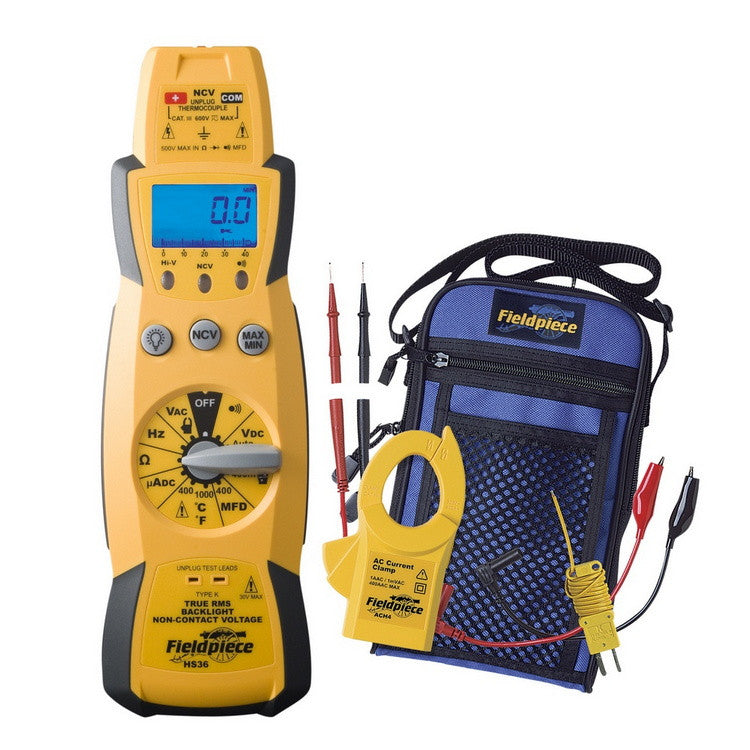

Features & Applications: The Fieldpiece Stick Meter with True RMS is designed specifically for HVAC/R field technicians. Tests micro amps for flame rectifier diode tests and the ability to measure frequency.
All of Fieldpiece's accessory heads work with the Fieldpiece Stick Meter. With the appropriate accessory head, this meter can measure the following parameters: AC amps, RH%, wet bulb temperature, air temperature, dew point, carbon monoxide, dual temperature, non contact (IR) temperature, air velocity, gas pressure, static pressure, vacuum, milliamps, micro amps, and carbon dioxide.
Features:
- True RMS
- Backlit
- Digital Multimeter
- K-type thermocouple
- Capacitance
- Non-contact voltage sensing
- Silicone rubber test leads with storage on the back
- High-voltage indicator
- Current clamp head
- Rugged rubberized case with built-in magnetic hanger
- Alligator clips
- LED and a beeper to indicate continuity
Spec Summary:
Backlight: |
Yes |
Display: |
3 3/4 digit liquid crystal display (LCD) with a maximum reading of 3999 |
Auto Power-off: |
30 minutes |
Operating Environment: |
32 to 122°F at <70%RH |
Power: |
Single standard 9V battery, NEDA 1604, JIS 006P, IEC 6F22 |
Battery Life: |
300 hours typical with alkaline |
TemperatureRange: |
-30 ~ 1000°F |
DC VoltsRanges: |
400mV, 4000mV, 40V, 600V |
AC Volts (50 - 500Hz) Ranges: |
400mV, 4V, 400V, 600V |
DC CurrentRanges: |
400µA, 4000µA |
ResistanceRanges: |
400 ohm, 4k ohm, 40k ohm, 400k ohm, 4M ohm |
CapacitanceRange: |
400400µF |
FrequencyRanges: |
4k, 40k, 400k, 4M, 40MHz
1 year warranty
|
|
