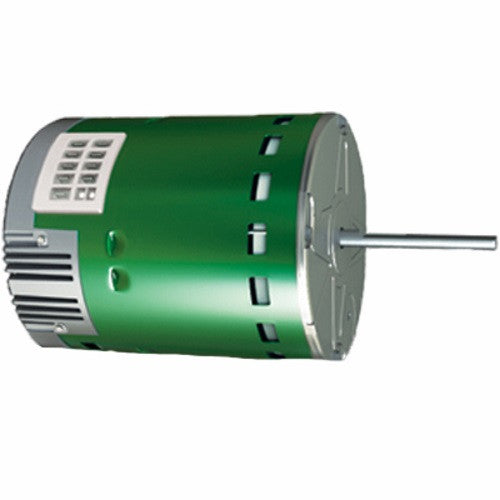

Genteq 6207E Evergreen Motor 3/4 HP 208-230 volts

• Multi-speed, constant torque, brushless DC motor
• Available in 1/3, 1/2, 3/4 and 1HP ratings
• Automatically determines motor rotation direction
• 5 discrete speeds using 24VAC (3 using 18VDC)
• Operating speed range of 600-1200 rpm
• NEMA 48-frame (5.6 inch diameter) Belly Band Mount with 5-inch
• long ½ inch diameter shaft
• UL and CSA recognized component.
• Standard ECM Replacement (Does not replace premium ECM constant airflow products such as Eon, 3.0, 2.3, and 2.5)
• Maintains ECM-level Efficiency up to 80%
• Soft Start and Off Ramp for quiet operation
• Electronic Overload Protection
• Replaces X13 Motors

Replaces Rheem/Ruud 51-101920-00
