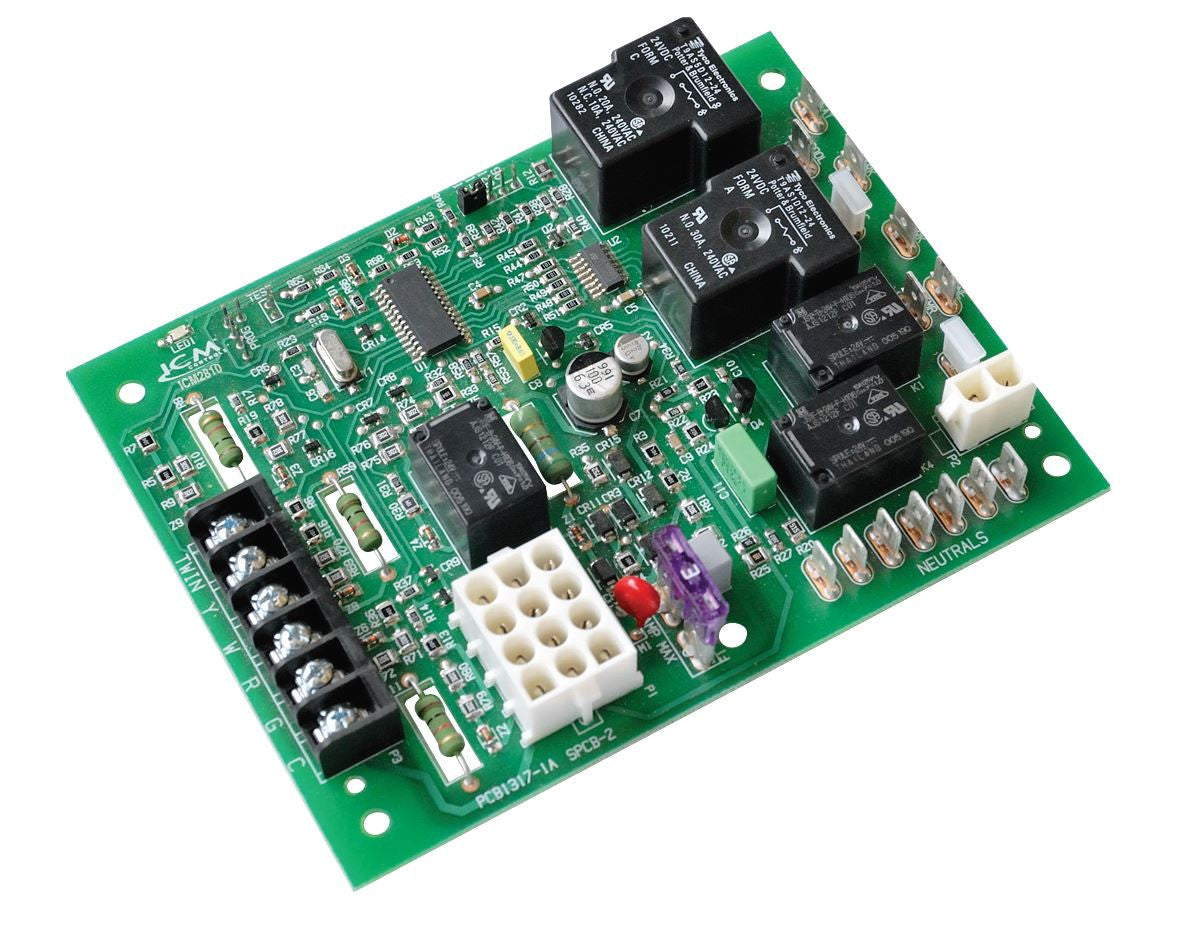

Goodman PCBBF136 PCBBF140 Furnace Control Board

Goodman Direct PCBBF136 PCBBF140 Replacement Furnace Control Board ICM2810

Low cost, form, fit and functional replacement furnace control board

Features

• Low cost, Goodman replacement board

• Microprocessor-based precision

• Controls inducer and blower fan motors, hot surface ignitor, and gas valve

• Monitors timing, trial for ignition, flame sensing, pressure and limit switches, and lockout

• Designed for 100% gas shutoff in case of ignition failure

• Reverse polarity protection

• Compatible with 24 VAC standard thermostat

• Twinning compatible with another

ICM2810 control board

• Compatible with LP or natural gas

• Provides diagnostic LED to aid in testing/troubleshooting

Specifications

Time Delays

• Pre-purge Time: 15 seconds
• Ignitor Warm Up Time: 18 seconds
• Post-Purge Time: 15 seconds
• Total Trials for Ignition: 3 (auto rest after 1 hour)
• Heat Blower On: 30 seconds
• Heat Blower Off: Selectable 90/120/150/180 seconds
• Fan (Heat) On/Off Delay: 1 second
• Cool On: 5 seconds
• Cool Off: 45 seconds

Electrical

• Voltage: Line (98 to 132 VAC) @ 60Hz
• Ignitor: 6A (resistive) @ 120 VAC
• Cool Blower: 6A @ 120 VAC
• Heat: 5A, 1/2 HP, 250 VAC
• Inducer Blower: 2.2FLA – 3.5LRA @ 120 VAC
• Gas Valve: 1.5A @ 24 VAC

Environmental

Ambient Temperature:

• Operating: -40oF to 176oF (-40oC to 80oC)

• Storage: -40oF to 185oF (-40oC to 85oC)

Humidity: 5% to 95% R.H. (non-condensing) at +55oC/131oF

Goodman: PCBBF136 and PCBBF140
