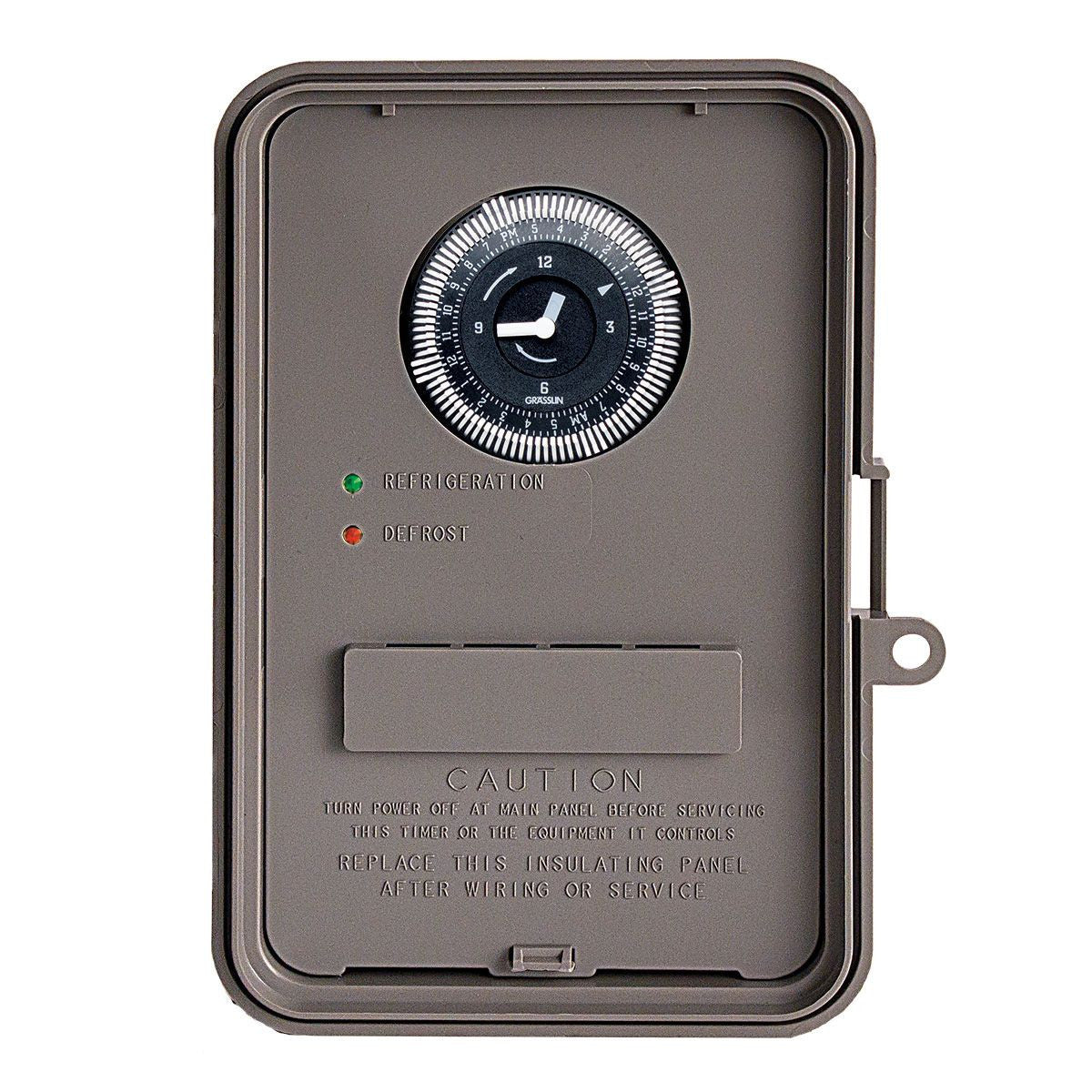

Grasslin DTAV40 Auto Voltage Defrost Timer 120/240VAC Heatcraft Frost King

The Grasslin DTAV40 defrost control is field adjustable for 120V or 240V operation and shall have defrost initiation times settable to the quarter hour via captive trippers at 15 minute intervals. The defrost timer is housed in a NEMA 3R indoor/outdoor plastic enclosure.

The relay output is 40A Resistive, 2HP @ 250VAC. Defrost terminations are completed by time and a remote temperature or pressure switch.

Features:

• DTAV40 replaces over 40 competitive models
• Auto-Voltage automatically adjusts for 120-240 VAC
• Mounts in existing enclosures, no tools required
• Box lug terminals
• Defrost times programmable in 15-minute intervals with captive trippers
• UL Type 3R outdoor enclosure (DTAV40IM - UL Type 1 Metallic)
• 40 Amp, 2 HP Rating
• Moisture resistant conformal coated board
• LED indicators for defrost and refrigeration cycles
• Defrost cycles are programmed independently
• "Real-time" clock face for quick, easy and accurate setting
• Min ON/OFF time: 15 minutes
• Max ON/OFF time: 23 hours, 45 minutes
• Warranty: Limited 1 year

Specifications:

• Input Voltage: Auto-Voltage 120-240 VAC, 60 Hz
• Electrical Ratings: 40 Amp Resistive, 120-240 VAC
• 1 HP, 120 VAC
• 2 HP, 240 VAC
• Operating Tempearature: -40º F to 104º F (-40ºC to 40ºC)
• Quartz: -4º F to 104º F (-20ºC to 40ºC)
• Operating Humidity: 0-95% RH, non-condensing
• Enclosure: UL Type 1 or UL Type 3R
• Min ON/OFF: 15 minutes
• Max ON/OFF: 23 hours, 45 minutes
• Electrical Life: 50,000 Operations at full load

• Wire Size: AWG #8

Replaces:

Paragon- All 8000 Series

Supco- All S8000 Series and knock off times

Intermatic DTSX-B-240-HC

Frost King Heatcraft 21340101

Grasslin 8219056 19368

Includes:

• DTAV40 Defrost Timer
• Installation & Operataing Instructions
