Heatstar HSU125 125,000 BTU Natural Gas w/ Propane Kit Shop Garage Unit Gray
Heatstar HSU125 125,000 BTU Natural Gas w/ Propane Kit Shop Garage Unit Gray

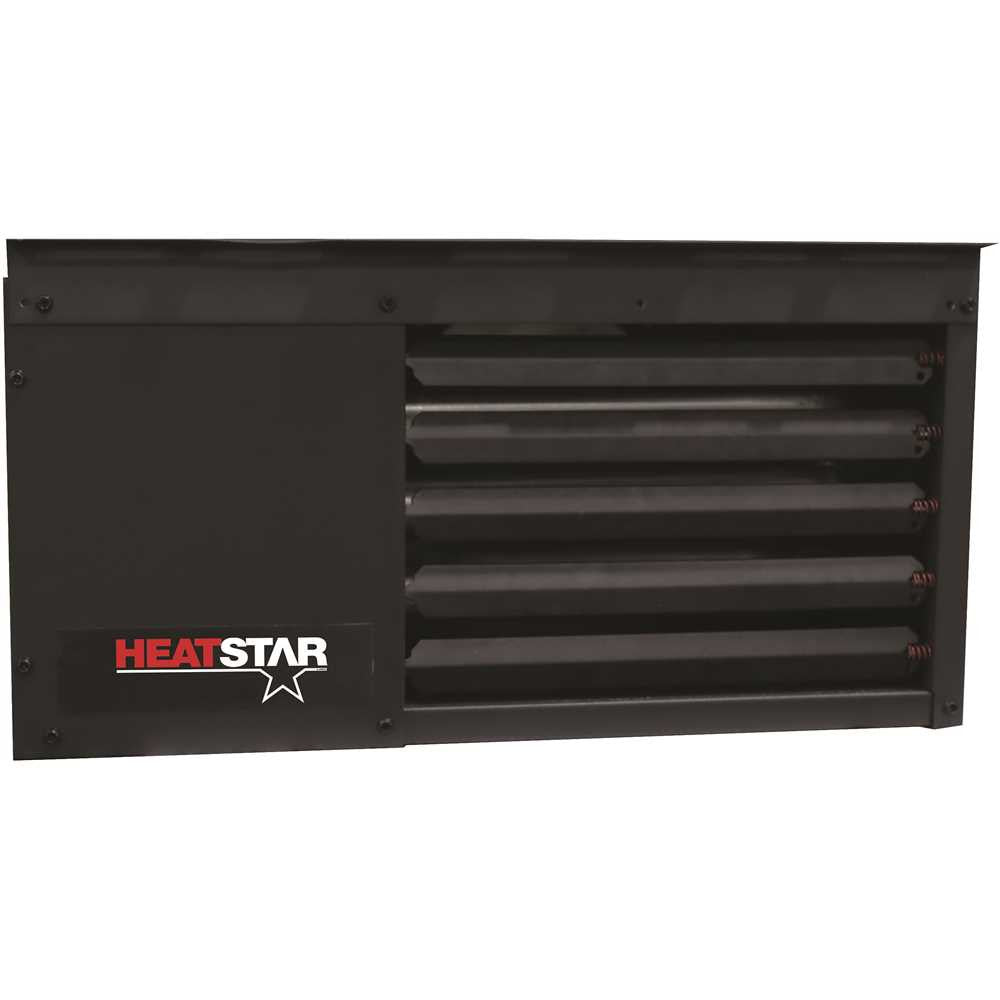

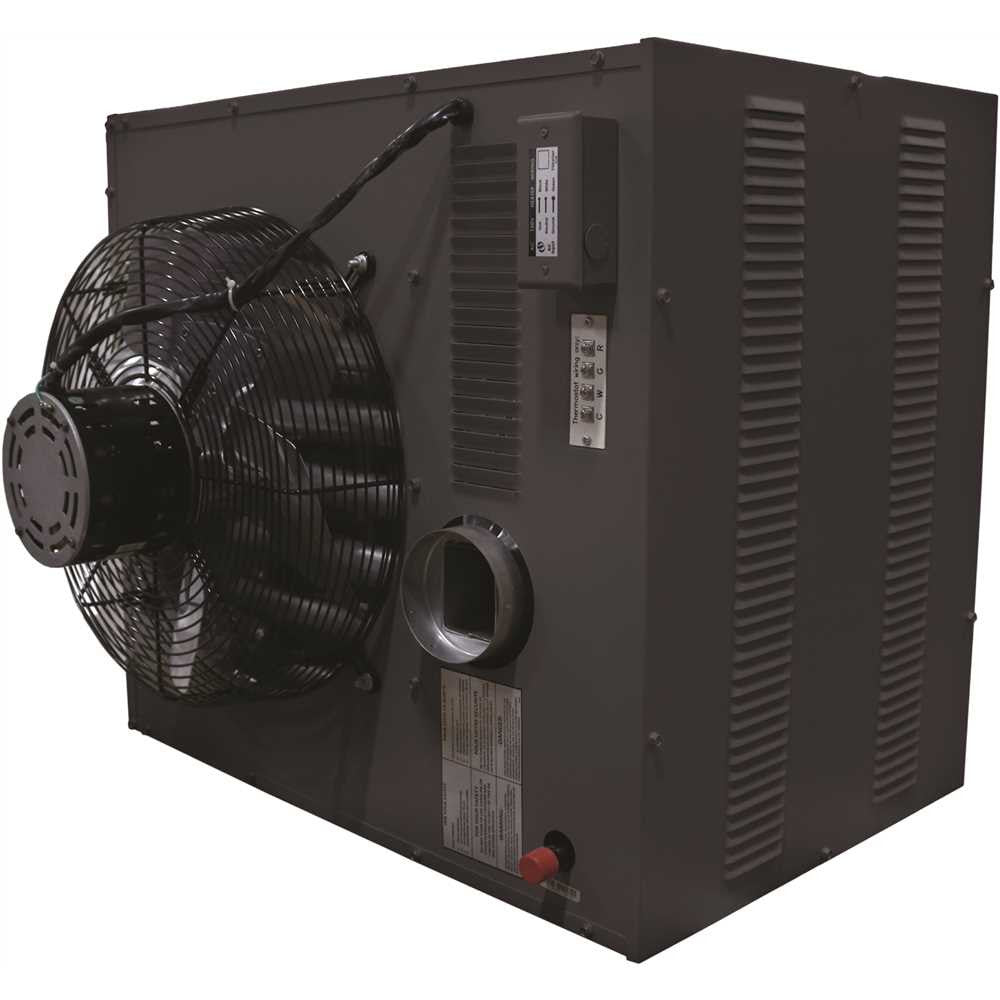

Heatstar HSU125 125.000BTU UNIT HEATER
Heatstar Forced Air Unit Heater is efficient and effective convection heat for your pole barns, light commercial, and large workshops
- Nat Gas Unit includes lp conversion kit
- Heats up to 3125 sq/ft
- Spark Ignition features self-diagnostic control module
- Includes angle brackets (2) for ceiling mount
- 1/2" Gas Connection
- Can vent horizontal or vertically

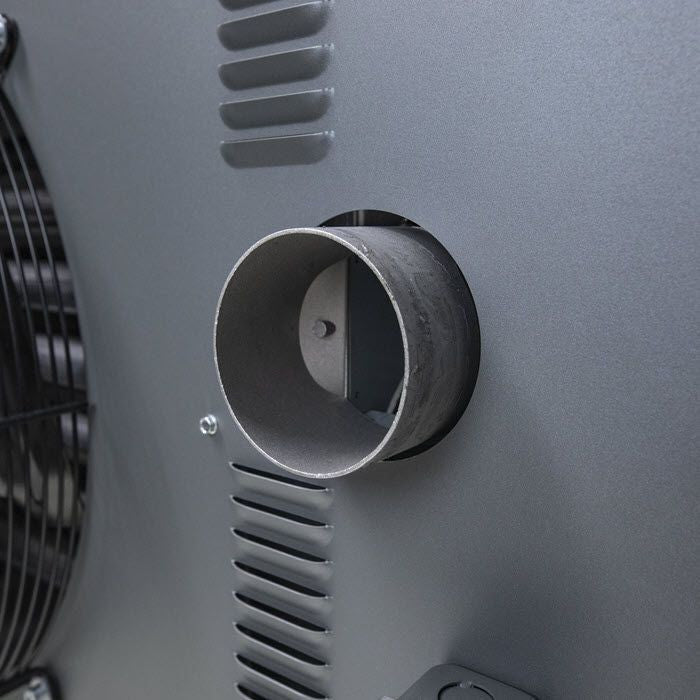

- 4" Flue Size
- Certified
Features + Benefits
- Requires only 1" clearance from ceiling with 2 included angle brackets
- Power exhaust allows for vertical or horizontal venting
- Designed for right or left side piping, electrical and flue connections by simply rotating 180°
- Aluminum tubular heat exchanger for maximum efficiency and longer life
- Spark ignition with self-diagnostic control module

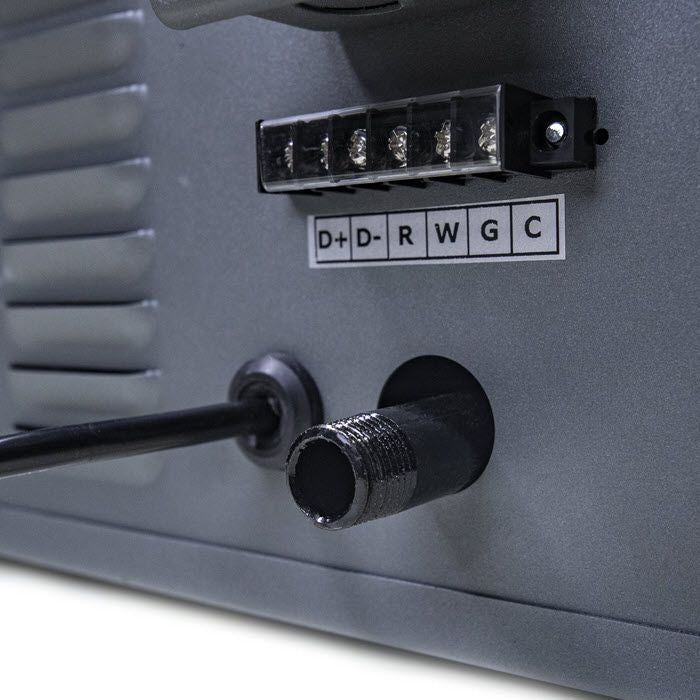

- Easy outside access to thermostat and AC terminals
- Requires 115 Volt AC power
- Includes LP conversion kit
- 4" flue for both horizontal and vertical venting; venting kit required
- Manufacturer's Warranty 3 year limited warranty
- Product Type Forced air
- Vent-Free No
- BTU Output 125,000
- Heating Capability (sq. ft.) 3,125

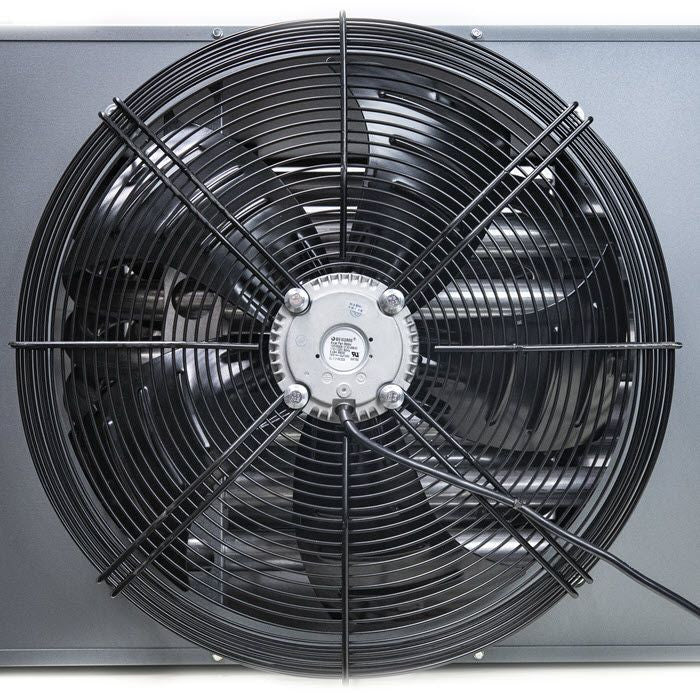

- Blower Included Yes
- Blower (CFM) 1,475
- Blower Power Supply (Volts, Amps) 120, 6.4
- Heat Settings 1
- Fuel Type Natural gas
- Fuel Consumption (gal./hr.) 0.125 MCF
- Gas Inlet (in.) 1/2
- Igniter Spark
- Thermostat Included No
- Remote Included No
- Oxygen Depletion Sensor No
- Dimensions L x W x H (in.) 26 9/10 x 27 1/5 x 25 1/2
- Product Weight (lbs.) 89.1
