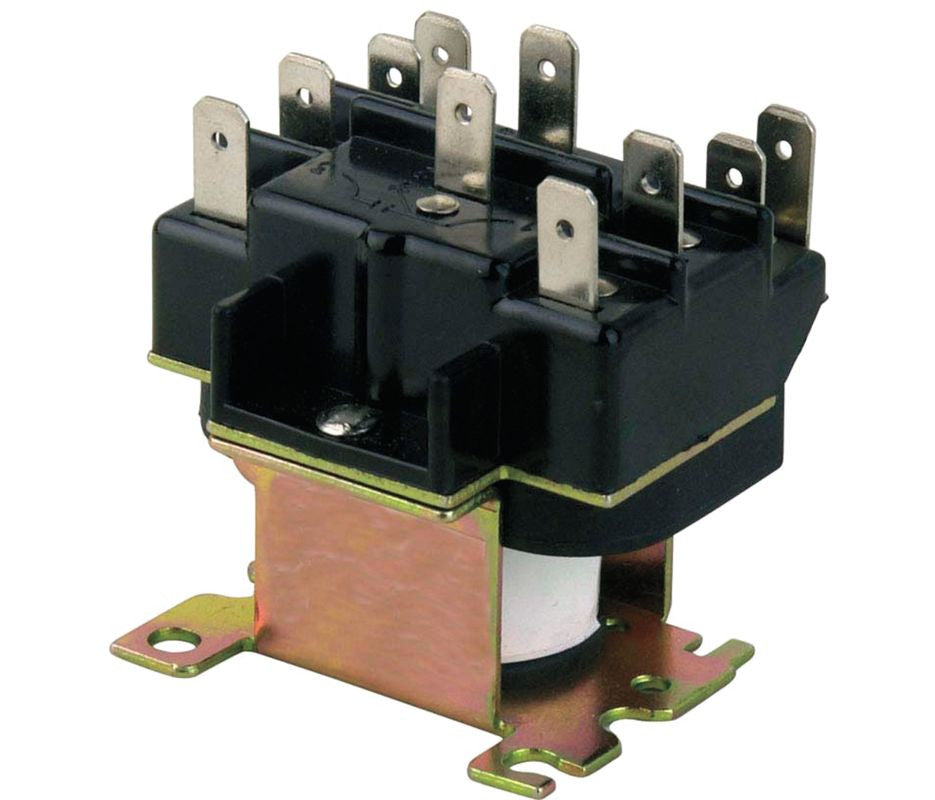

Heavy Duty Fan Relay 120V DPDT

JARD 2PDT relays are primarily used for various applications in heating, air conditioning and refrigeration. They are also suitable for general purpose Switching applications in appliances, vending machines, fan controls, and business machines provided the device being controlled is Within the electrical limits of the relay.

• Replaces Honeywell, White-Rodgers/RBM
• Quick-connect terminals
• Base designed for easy replacement of competitive relays
• Molded terminal numbers and circuit diagram on top of relay
• Power to pilot duty contacts

Contact Rating Amps 25A at 277 VAC
Resistive 15A at 277VAC
Inductive Pick-up Voltage <=96VAC
Relay Type HVAC/R
Hold Voltage 96VAC
Drop-out Voltage >=24VAC Hz 50/60
Terminal Style Quick Connect
