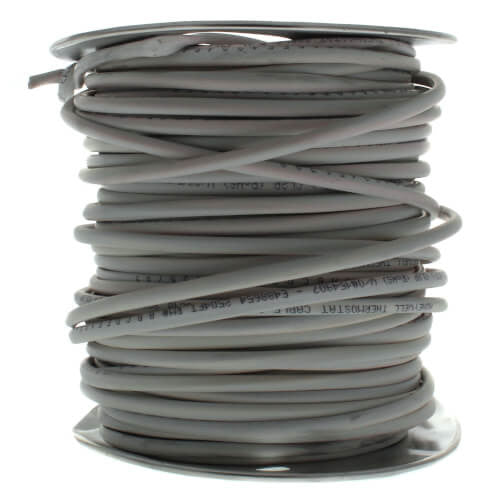

Honeywell 18/8 250' Solid PVC Low Voltage Thermostat Cable

250 ft - 18/8 Solid CL2 (PVC) Honeywell Genesis Thermostat Cable

Applications:Wiring of Thermostat Controls, Heating and Air Conditioning Equipment, doorbells, as well as other Low Voltage Applications. Sunlight Resistant except CL2P.
Features:Sequential Footage Markings on Spools. Braided Ripcord.
Code Restrictions:OK for use with all Power-Limited Circuits except those in Risers and Plenums.

Construction:Copper Conductors, Polypropylene Insulation, Polyvinyl-Chloride Jacket.

Length (Feet): 250'

AWG: 18

Conductors: 8

Outside Diameter: 0.144

Application: HVAC

Features: PVC Coated

Color: Brown Jacket

Type: Solid

Package Type: Reels

Approvals: CL2

Description: 18 AWG 8/C CL2

Thermostat Compliance: UL Standard 13; NEC Article 725

Construction: Conductors 18 AWG Solid Bare Copper

No. of Conductors 8

Assembly Tubed jacket over untwisted insulated conductors

Insulation Type Polypropylene

Color Red, Wht Thickness 0.006" nom. Diameter 0.052

Jacket Type PVC Color Brown

Thickness 0.015" nom.

Diameter 0.136" nom.

Legend (Ink Print) HONEYWELL THERMOSTAT CABLE P/N 4710 2C18 3038058 (ETL) CL2 SUN RES (RoHS) w/o# XXXXX-XXXXXX XXXXX

FT Properties Temperature Rating -20 to 60 oC

Operating Voltage 300 Volts max.

Capacitance 25 pf/ft nom.

Characteristic Impedance 100 Ohms nom.

DC Resistance 6.5 Ohms/M' at 20oC

Flame Rating UL 1685 Vertical Tray
