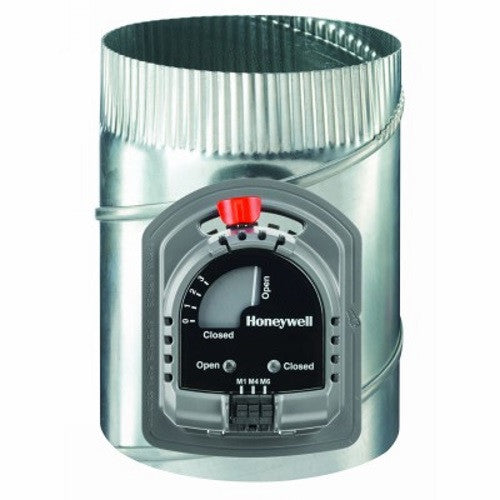

Honeywell ARD10TZ Automatic Round Zone Damper ARD-10TZ
Honeywell ARD10TZ Automatic Round Zone Damper ARD-10TZ
No reviews
Regular price
$139.19 USD
Regular price
Sale price
$139.19 USD
Unit price
/
per
Overview
Honeywell Automatic Round Damper power-close, spring-open models ensure low leakage while controlling circulating air in heating, cooling and ventilation systems.
Features
- Features galvanized steel with single-blade damper, which closes off tightly against gasket for minimal leakage
- Designated as power closed/spring return open damper for use with Honeywell Zoning Systems
- Can be field-converted when used as an independent zone or for fresh air intake
- Rated to operate up to 1-inch wc
Product Specifications
- Application: Zone Damper
- Item Type: Product
- Voltage: 24V
- Size (in.): 10 in. diameter
- Size (mm): 254 mm diameter
- Damper Type: Single-blade, round
- Shape: Round
- Motor or Actuator Mounting: Side or Top
- Motor: Power closed, spring open
- Motor Timing: 30 seconds power open/10 second spring return
- Wires to Motor: Terminals: M1-Power; M6 Common; M4 (optional)-LED indication
- Other Motor Information: Simplified range stops
