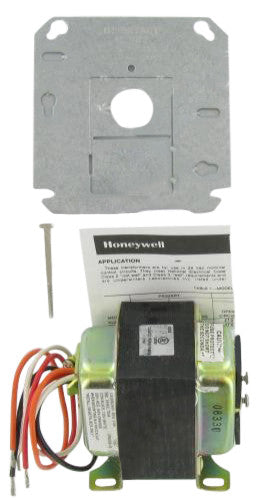

Honeywell AT175A1008 Transformer 120/208/240 Vac 75VA 24VAC
Honeywell AT175A1008 Transformer 120/208/240 Vac 75VA 24VAC
No reviews
Regular price
$48.90 USD
Regular price
Sale price
$48.90 USD
Unit price
/
per
Honeywell AT175A1008 Transformer 120/208/240 Vac
Provide power to 24 Vac circuits in heating/cooling control systems. Intended for use in systems with predictable, uniform loads. Can be used in any application that does not exceed the listed ratings.
Features:
- Rated at 75 VA.
- Color-coded leadwires for primary connections and screw terminals for secondary connections, fixed 1/4 inch (6 mm) male quick-connects or color-coded leadwires for both primary and secondary, are standard.
- Meets Underwriters Laboratories Standard UL 1585
- Identified Class 2 not wet, Class 3 wett
Product Specifications
- Dimensions (in.)
- 3 3/16 in. high x 2 3/8 in. wide x 3 5/8 deep
- Dimensions (mm)
- 81 mm high x 60 mm wide x 92 mm deep
- Temperature Range (F)
- -20 F to +105 F
- Temperature Range (C)
- -29 C to +41 C
- Includes
- Metal end bells
- Mounting
- Foot mounted, plate mounted on 2x4 in. or 4x4 in. outlet box , clamp mounted using outlet box knockout, or panel mounted
- Electrical Ratings
- Primary voltage--120 Vac, 208 Vac, 240 Vac; Secondary voltage--27.5 V.O.C.
- Frequency
- 60 Hz
- Approvals, Underwriters Laboratories Inc.
- UL Listed: A,C,F models. File # E14881
- Approvals, Canadian Standards Association
- CSA Certified: A & B models.
- Electrical Connections (Primary)(in.)
- 9 in. leadwires
- Electrical Connections (Primary)(mm)
- 229 mm leadwires
- Electrical Connections (Secondary)(in.)
- (2) screw terminals
- Electrical Connections (Secondary)(mm)
- (2) screw terminals
- Electrical Ratings, Output
- 24 Vac at 75 VA
