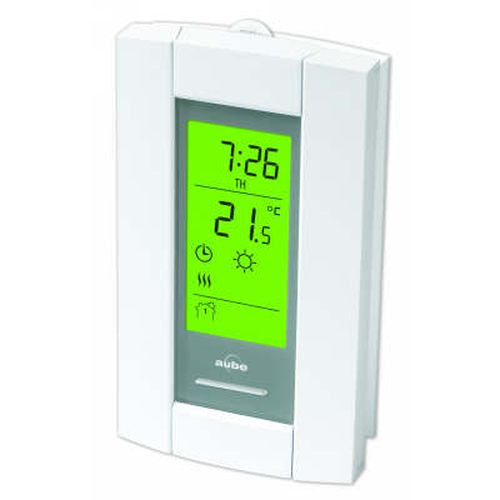

Honeywell Aube TH115-AF-GA Line Volt Thermostat-120/240V

Honeywell Aube TH-115-AF-GA Programmable Ambient & Floor Heat Line Volt Thermostat (120v/240V)

Features:

• Three choices of temperature control in a single thermostat (Ambient, Floor, or Ambient with Floor temperature limits)
• 5 mA ground fault circuit interrupter (GFCI) on GA models
• GFCI test light verifies safety control is functioning properly and alerts if a leak is detected
• Advanced temperature control ensures total comfort by minimizing temperatue varations
• ON/OFF switch enables thermostat shutdown at the end of heating season for added security
• Early Start function ensures programmed temperature is reached by programmed time
• Temporary bypass enables temperature override without changing programming

• Product Specifications

  Application

  Radiant floor

  Dimensions (in.)

  4.9 in. X 2.8 in. X 0.9 in.

  Dimensions (mm)

  124 mm X 70 mm X 23 mm

  Includes

  15-feet / 4.6-m floor sensor

  Used With

  Aube CT240/CT241 Telephone Controller; Aube AC112-01 15-feet/4.6-m floor sensor

  Comments

  With Backlit Display; 5 mA GFCI

  Mounting

  Vertical

  Electrical Ratings

  Maximum Load: 15 A (resistive only ), 3600 W @ 240 Vac

  Frequency

  60 Hz

  Approvals, Canadian Standards Association

  Approved

  Electrical Connections

  6 in. (150 mm) tinned copper lead wires

  Supply Voltage

  120 Vac; 240 Vac

  Switch Positions (System)

  AF (ambient + floor)/ F (floor only); Display format: F/12 h or C/24h; Early Start function: Enabled or Disabled

  Operating Temperature Range (F)

  32 F to 120 F

  Operating Temperature Range (C)

  0 C to 50 C

  Sensor Element

  Thermistor

  Differential Temperature (F)

  1 F

  Differential Temperature (C)

  0.5 C

  Color

  White

  Ambient Temperature Range (F)

  32 F to 158 F

  Ambient Temperature Range (C)

  0 C to 70 C

  Switching Action

  DPST

  Switch Type

  Relay

  Programmability

  7-Day Program

  Power Method

  Hardwired

  Setting Temperature Range (F)

  40 F to 86 F room temperature; 40 F to 104 F floor temperature

  Setting Temperature Range (C)

  5 C to 30 C room temperature; 5 C to 40 C floor temperature

  Parts Needed for Operation (not included) - Non-Zoned System

  Aube AC112-01 15-feet/4.6-m North American Floor Sensor
