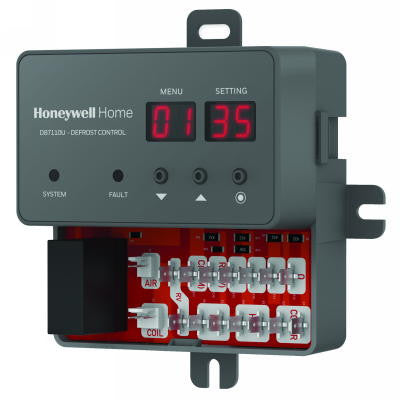

Honeywell DB7110U1000 Universal Heat Pump Defrost Control

Product Specifications

Application

Single Stage Heat Pumps

Includes

Air temperature sensor with 2 pin connector; Coil temperature sensor with 3 pin connector; Wire leads; Wire nuts; Mounting screws

Comments

All terminals except FAN-IN and FAN-OUT are NEC Class 2 low voltage; FAN-IN and FAN-OUT are line voltage.

Item Type

Product

Mounting

Any Orientation, but recommended to mount so display is easily readable

Electrical Ratings

Maximum Input Current: 200 mA; Compressor Contactor: 1A @ 24 Vac; Aux Heat: 1A @ 24 Vac; Reversing Valve: 1A @ 24 Vac; Outdoor Fan: 1/2 HP motor, 5A full load, 30A locked rotor, 240 Vac.

Frequency

60 Hz

Stages

Single Stage On/Off

Electrical Connections

1/4 in. quick connect

Operating Humidity Range (% RH)

Less than 95% RH, non-condensing

Supply Voltage

24 Vac

Operating Temperature Range (F)

-40 F to 150 F

LEDs

System LED, Fauult LED

Ambient Temperature Range (F)

Coil Enable: 30 F to 36 F; Termination Temperature: 50 F to 100 F; Auxiliary Lockout Temp: 0 F to 40 F; Compressor Lockout Temp: -10 F to 40 F

Display

4 character 7 segment display for Menu and Settings

Operation

All outputs rated for 100,000 operations
