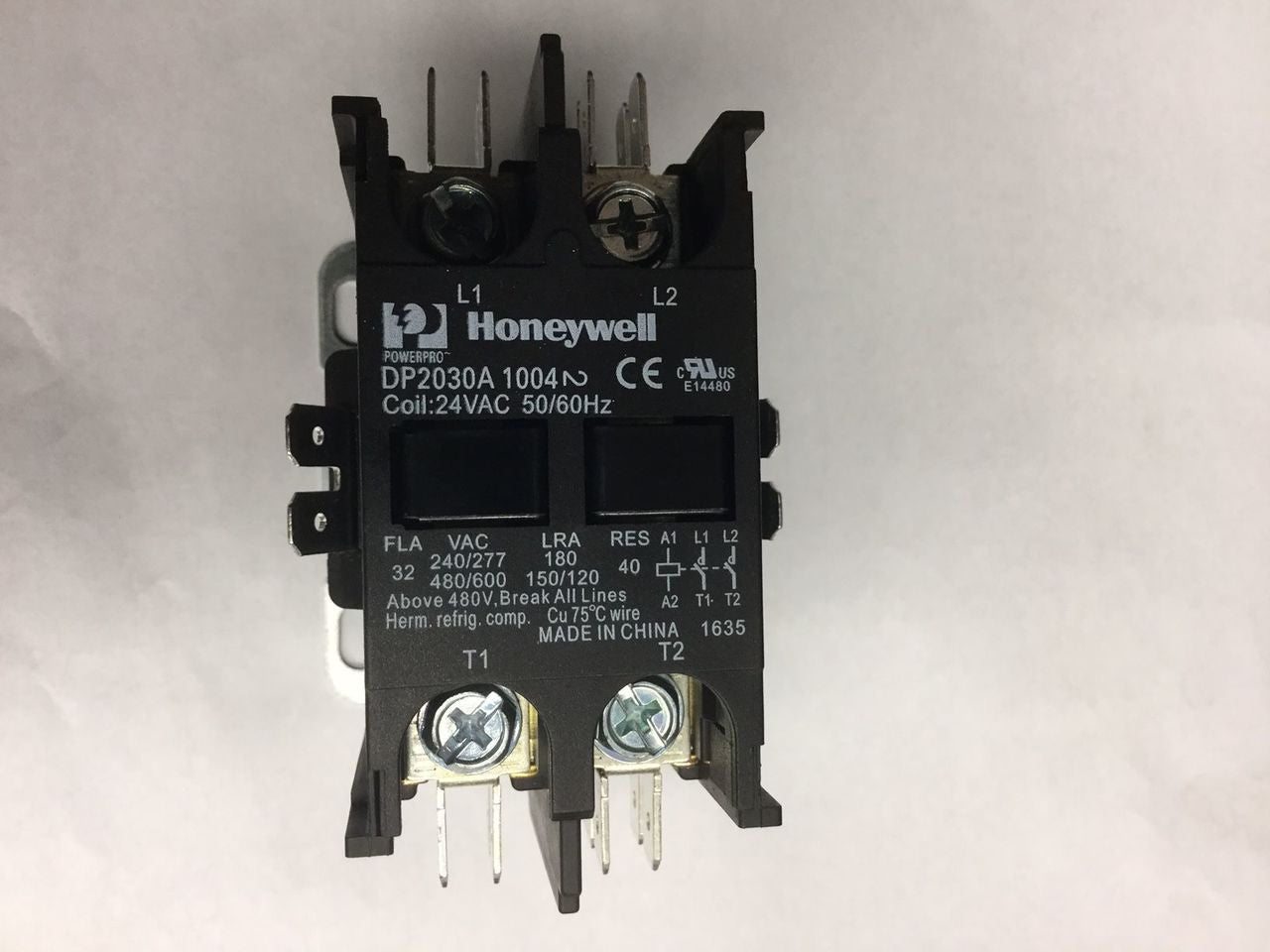

Honeywell DP2030A1004 24V 30A 2 pole Contactor

These electromagnetically-operated Definite Purpose Contactors provide switching for starting induction motors.

Features:

• Silver cadmium oxide contacts provide long life under demanding duty cycles.
• Low profile design allows for more wiring room.
• Multiple mounting holes and slots for convenient,

  Product Specifications

  Application

  Economy Definite Purpose Contactor

  Dimensions (in.)

  3.25 in. high x 3.63 in. wide x 3.8 in. deep

  Dimensions (mm)

  83 mm high x 92 mm wide x 97 mm deep

  Item Type

  Product

  Frequency

  50 Hz; 60 Hz

  Approvals, Underwriters Laboratories Inc.

  Component Recognized: File No. 14480, Guide No. NLDX2

  Approvals, Canadian Standards Association

  Certified: File No. LR6535

  Electrical Connections

  #10-32 combination head screws

  Temperature Ratings (C)

  -20 C to +65 C

  Temperature Ratings (F)

  -4 F to +149 F

  Switching

  DPST

  Contact Ratings (AFL)

  30 A @ 240/277 Vac

  Contact Ratings (resistive)

  40 A @ 240/277 Vac, 480 Vac, 600 Vac

  Poles

  2

  Contact Connections (coil)

  1/4 in. quick-connects

  Coil Ratings Voltage

  24 Vacinterchangeable mounting with most competitive devices.
