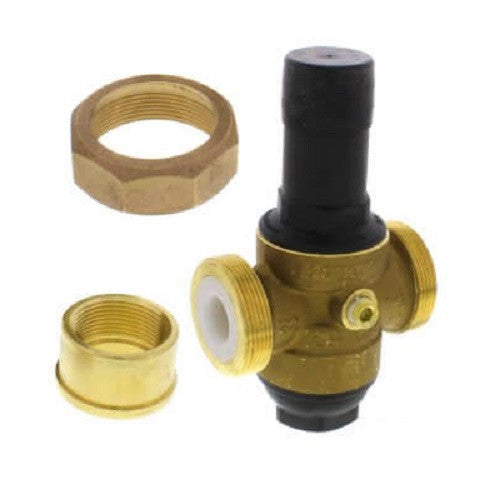

Honeywell DS06-103-SUS-LF 1 1/4" Dialset Female NPT Singlue Union Sweat-PRV

Honeywell DS06-103-SUS-LF 1 1/4" Dialset Female NPT Singlue Union Sweat-PRV

The Honeywell DS06 Dial Set® Pressure Regulating Valve is a high quality pressure regulating valve that maintains a constant outlet pressure over a wide range of inlet supply pressures. It is suitable for potable water and irrigation applications. The downstream pressure adjustment dial eliminates the need for a pressure gauge when adjusting the pressure setting (static pressure only).

Features

• Built-In Dial-Set™- no guage is needed to install or set static pressure.
• Noncorroding Unitized Cartridge - contains all working parts and is easily replaceable
• Outlet adjustment range of 25 PSI to 90 PSI make it suitable for household, commercial, industrial and turf-and-irrigation applications.
• Install it just about anywhere. The internal and external threading allows for use in thread-by-thread, singleunion or double-union configurations.
• 1/4" NPT tap accessible from both sides to validate output
• Built in strainer to simplify maintenance
• Approvals - ASSE 1003, IAPMO, CSA, Low Lead Compliant

Product Specifications

Dimensions (in.)

6-15/16 in. high x 4-9/64 in. long (Union body no tailpieces)

Dimensions (mm)

176.5 mm high x 105 mm long (Union body no tailpieces)

Item Type

Product

Approvals, Canadian Standards Association

Certified (B356-10)

Operating Temperature Range (F)

140 F Maximum

Operating Temperature Range (C)

60 C Maximum

Connection Type

Femaile NPT Threaded Inlet & Outlet Externally threaded for Unions

Pipe Size (inch)

1 1/4 IN.

Pipe Size (DN)

DN32

Valve Type

Pressure Regulating Valve

Controlled Fluid

Potable water

Materials (Body)

Bronze (body), Fabric Reinforced Diaphragm, Stainless Steel and Engineered Thermoplastics.

Outlet Pressure Adjustment Range (psi)

25-90 psi

Max. Inlet Pressure Rating (psi)

250 psi

Gauge Tap

1/4 in. NPT (two, one on each side of body).

Calibrated Adjustment Dial

YES

Reducing Ratio

10:1 Maximum

Union Fittings

Single-Union Sweat

Approvals, ASSE

Certified 1003-2009

Approvals, IAPMO

Listed
