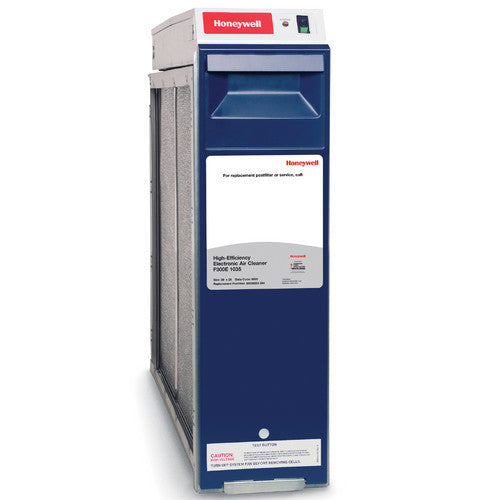

Honeywell F300B2012 F300 Electronic Air Cleaner 20x12.5 Inch

Capturing up to 98% of particles (3.0 - 10.0 micron) that pass through the filter, the F300 offers the highest level of filtration on the market. It is widely compatible, operating with all gas, oil and electric forced warm air furnaces and air-conditioning systems, and is also available in four convenient sizes to fit most ducts.

The Honeywell F300B2012 is a complete system that includes the cabinet, a 240v power box, access door, one electronic cell, one pre-filter. The post-filter is not included, but one can be slid in. Ready to connect your duct and plug in.

The Honeywell F300 maintains peak air cleaner efficiency over a wide range of cell dirt loading conditions through the use of a self regulating dual voltage high frequency power supply. The dual voltage increases particle charging efficiency with a high 8150v ionizing wire voltage and increases collection surface area through a reduced 4280v plate voltage. The dual voltage is a feature exclusive to Honeywell.

Also exclusive to the F300 is a very sensitive differential pressure sensor making the Honeywell compatible with slow variable speed air handlers.

A test button is provided to check system operation. Galvanized cabinet. Five year manufacturer warranty.

• Media post-filter provides enhanced filtration.
• Solid state power supply is self-regulating and maintains peak efficiency during a wide range of cell dirt loading conditions.
• New low-profile door with test button to check system operation.
• Helps filter efficiency-robbing "gunk" before it coats critical system parts.
• Very low pressure drop.
• Exclusive wireless W8600A AIRWATCH indicator reminds customers when to wash cells to keep the unit operating at peak efficiency, as well as when to change UV Lamps and Humidifier Pads (optional).
• Exclusive 10-year Clean Coil Guarantee.
• Rugged zinc-coated, roll-formed cabinet provides superior strength and corrosion protection.

Description High Efficiency Electronic Air Cleaner
Application Duct mounted
Dimensions (in.) 20 in. x 12 1/2 in.
Dimensions (mm) 508 mm x 318 mm
