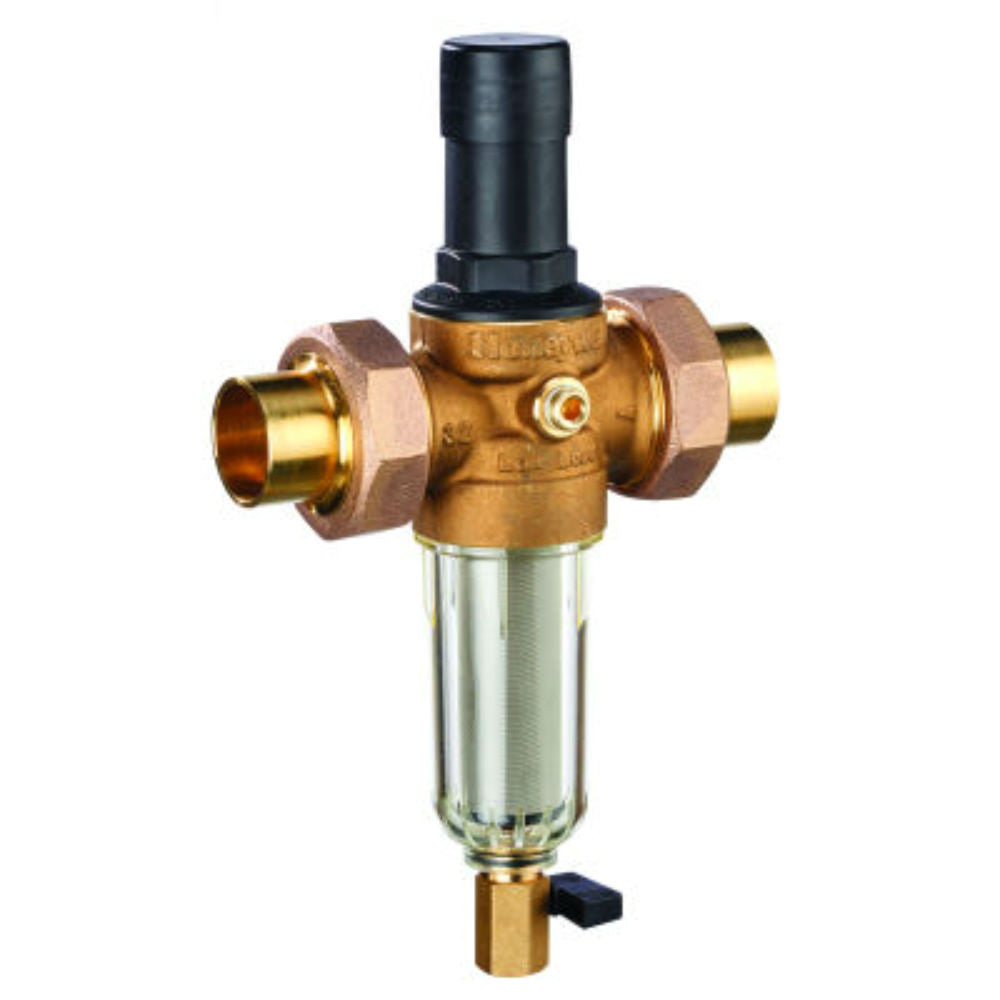

Honeywell FK06-101-DUS-LF FK06 Pressure Reducing Valve Filte

The Honeywell FK06 DialSet Pressure Regulating Filter Combination is a high-quality pressure regulating valve and rinsable filter that maintains a constant outlet pressure over a wide range of inlet supply pressures and ensures a continuous supply of filtered water. It is suitable for potable water and irrigation applications. The downstream pressure adjustment dial eliminates the need for a pressure gauge when adjusting the pressure setting (static pressure only).

Features

• Includes filter and PRV combination to prevent ingress of foreign matter and protects against over-pressurization.
• Allows faster installation times and protects equipment from premature failure.
• Rinse-able 100/50 micron filter.
• Built-in adjustment dial eliminates the need for a gauge when adjusting the static pressure setting.
• Non-corroding unitized cartridge contains all the working parts and is easily replaceable.
• Outlet pressure adjustment ranges are suitable for household, light commercial, industrial, and turf and irrigation applications.
• Shipped with threaded and sweat union connections and service wrench.
• Shock resistant clear synthetic material filter bowl enables easy inspection for filter contamination.
• Stainless steel filter element.
• Filter bowl and sleeve are easily exchanged.

Product Specifications

Application

Pressure regulating valve and rinsable filter that maintains a constant outlet pressure

Dimensions (in.)

9-3/4 in. high x 5-13/64 in. wide

Dimensions (mm)

247 mm high x 132 mm wide

Comments

Can be configured as female thread-by-thread, double-union, NPT threaded or sweat. Low lead content < 0.25% Lead.

Item Type

Product

Mounting

Installation position: horizontal with filter bowl downward

Approvals, Canadian Standards Association

Certified

Ambient Temperature Range (F)

33 F to 140 F

Ambient Temperature Range (C)

1 C to 60 C

Connection Type

Sweat

Pipe Size (inch)

3/4 in.

Pipe Size (DN)

Dn20

Fluid Temperature (C)

Maximum 40 C

Fluid Temperature (F)

Maximum 104 F

Valve Type

Pressure Regulating Valve

Controlled Fluid

Potable water

Materials (Body)

Brass

Materials (Regulator)

Fabric-reinforced diaphragm

Materials (Interior parts)

Stainless steel and engineered plastics; Filter - Stainless steel 50 micron rinsable filter insert

Outlet Pressure Adjustment Range (psi)

25 to 90 psi; Differential 14.5 psi minimum (inlet to outlet)

Max. Inlet Pressure Rating (psi)

250 psi

Gauge Tap

1/4 in. NPT

Calibrated Adjustment Dial

Yes ±4 psi

Union Fittings

Double union sweat

Approvals, ASSE

ASSE 1003 Listed
