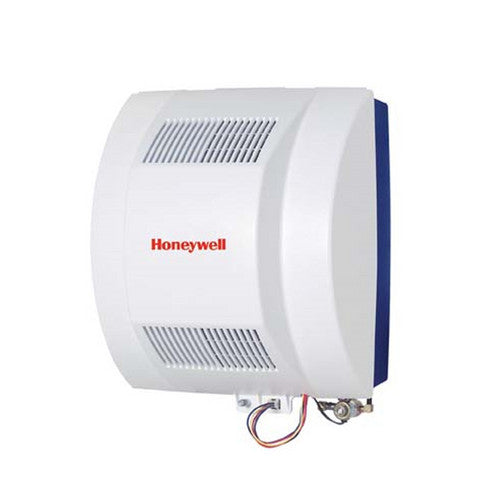

Honeywell HE365DG115 TrueIAQ Fan Powered Humidifier

Honeywell HE365DG115 TrueIAQ Fan Powered Humidifier

Power Flow-through Humidifier uses the warm air furnace blower to provide whole house humidification.

Features

• Humidifier pad is coated with AgIon antimicrobial agent.
• Capable of humidifying the largest area, up to 3,000 sq ft of any Honeywell flow-through humidifier.
• Interior components designed for quick maintenance and service.
• Option of automatic humidity control or standard humidistat.
• Standard tested per ARI Standard 610.

Product Specifications

Description: Powered Flow Through Humidifier with H1008 HumidiCalc+ Automatic Humidistat

Application: Humidification

Type: Powered Flow-Through

Capacity (gal. per day): 18 gal. per day

Capacity (liter per day): 68 L per day

Voltage: 120 Vac

Electrical Ratings: 0.7 A

Frequency: 60 Hz

Color: White and Blue

Mounting: Duct mount Plenum Opening (in.): 14 1/16 in. high x 13 1/2 in. wide

Plenum Opening (mm): 357 mm high x 343 mm wide

Dimensions (in.): 15 in. high x 14 in. wide x 10 1/4 in. deep

Dimensions (mm): 387 mm high x 356 mm wide x 260 mm deep

Approvals, Underwriters Laboratories Inc UL/CUL Listed Report E185662

Includes: Powered Flow-through Humidifier, mounting template, humidifier pad, self-piercing saddle valve, automatic humidistat.

Tradeline Value: Tradeline

Product Specifications

Dimensions (in.)

19 in. high x 11 1/4 in. wide x 9 in. deep

Dimensions (mm)

387 mm high x 356 mm wide x 260 mm deep

Temperature Range (C)

1.1C-40C

Includes

Humidifier, mounting template, humidifier pad, self-piercing saddle valve, automatic humidistat.

Mounting

Duct or Remote Mount (up to 20 feet/6 meters)

Electrical Ratings

0.7 A

Frequency

60 Hz

Approvals, Underwriters Laboratories Inc.

UL/cUL Listed Report E185662

Tradeline Value

Tradeline

Voltage

120 Vac

Color

White and Blue

Capacity (gal. per day)

18 gal. per day

Capacity (liter per day)

68 L per day

Plenum Opening (in.)

14 1/16 in. high x 13 1/2 in. wide

Plenum Opening (mm)

357 mm high x 343 mm wide
