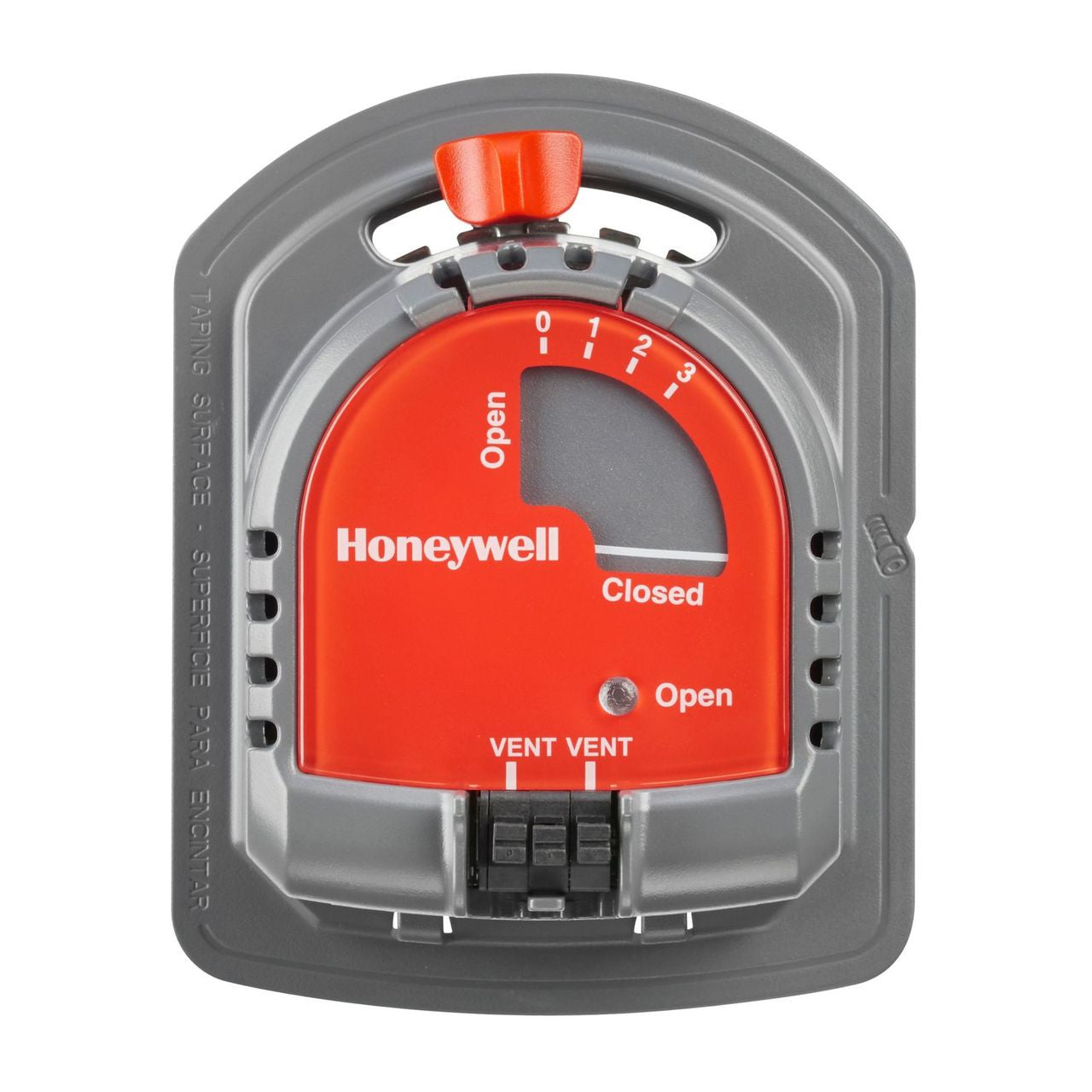

Honeywell M847D-VENT Replacement Motor for EARD Vent Damper

Overview

The M847D is a two position, 24 Vac spring return actuator designed to operate ARD, EARD and ZD zone dampers.

Installation Made Easy

For fast, accurate installation with no callbacks, the TrueZONE Damper Actuator has you covered with a range of features that simplify installation in every application:

·For RNC OA (outside air)

·Adjustable Range Stops - Easy to understand and set by utilizing a push-in lever. They're used to bleed air into the zones which helps lower pressure and reduce noise.

·Mechanical Position Indicator - Easy viewing through a clear window.

·Push-In Terminals - The same easy wiring design used on TrueZONE Panels. No tools needed, has space for two wires.

·LED Indicator Lights - Red indicates the damper is closed and green indicates open (used in 3-wire applications)

·Taping Flange - Lets you position insulation under it before sealing with foil tape.

Replaces M847D1012

Features

• Low voltage, spring-return damper actuator.
• Equipped with anti-rotation and drive shaft extensions for direct mounting to 7/16 inch diameter coupling style dampers.
• Adjustable range stops.
• Direct replacement for M847D1004

Product Specifications

Application Replacement motor for EARD ventilation damper

Used With EARD

Item Type Product

Voltage 24V

Motor Power open, spring closed

Motor Timing 30 seconds power closed/10 seconds spring return

Wires to Motor Terminals: M1-Power; M6 Common; M4 (optional)-LED indication

Other Motor Information Simplified range stops
